'Kylix'  This class has now it's own page too, click the picture to go there.








'Eirene'

Found in Bradwell.    Odd rounded transom.  Timber, construction, planked in ply and built in Rhodesia, the owner who built it planned to use her to escape, sailing from South Africa.  I hope to find out more.  Yes here is the latest.... This is Mr. Scrace's  boat Sail No 111.  Built in Rhodesia and later shipped to the UK after many years sailing the South African coast.  As it is so modified we will leave it here with the M.G. designs.  Tony thinks MG actually designed it separately.  She is 30 ft long and with extra rig and ballast.  Hollow bilge keels too. ( they are fuel tanks!)  Tony was looking for  a shared ownership  agreement with maybe one of our number to fit her out and get her back in the water for 2006.  She does not really need restoring, just sorting! All is there, a coat of antifoul and a lick of paint on the topsides.  The gear on board is all 1970's but most works, Tony admits it might want more up to date gear as time goes on...

March 2007, Tony has decided to offer her for sale, and has sold her via our  For Sale pages.!!  the new owner Norman has now registered,  has the masts back up and hull part painted!!



August 2007, ' Eirene' has been launched into the Blackwater!  She will be out and about with the EOG later this year.  Norman has changed the galley and heads and altered the accommodation to suit her new role as a coastal cruiser.  I expect the companionway will get altered next! More pics of her soon.




  Sailing on the Blackwater 2012/13 with Norman the new owner.






One of the Few Francis Drake  Class vessels built. Designed by MG as a larger version of the GH they turned out  37 ft  on deck, but as many, this one stretched to 39!

Review in Y.M.





'Matapan'

A  'Good Hope' Design by M.G. Seen here at Burnham.  There is a Ferro version of this, the 'Barrier Reef', in the R. Colne, sadly now a houseboat!  'Cabonade'

The drawings of this design are now on CD!



  'Foreland Gull'

A Lone Gull II.

Owned by Malcolm and Cynthia Jolly

We have started a page just for  all the Lone gull II designs that we have owner information on,  courtesy of our Advisor Malcolm Jolly.  See the advisors pageWe have a list of all known Lone Gulls and some more photos here.

Click here to go to the Lone Gull II page







A Seareach 30, one of the less known M.G. designs.



'Providence'  The same SeaReach 30 as above, now afloat and for sale on www.boatsandoutboardsforsale.co.uk

Who owns it?

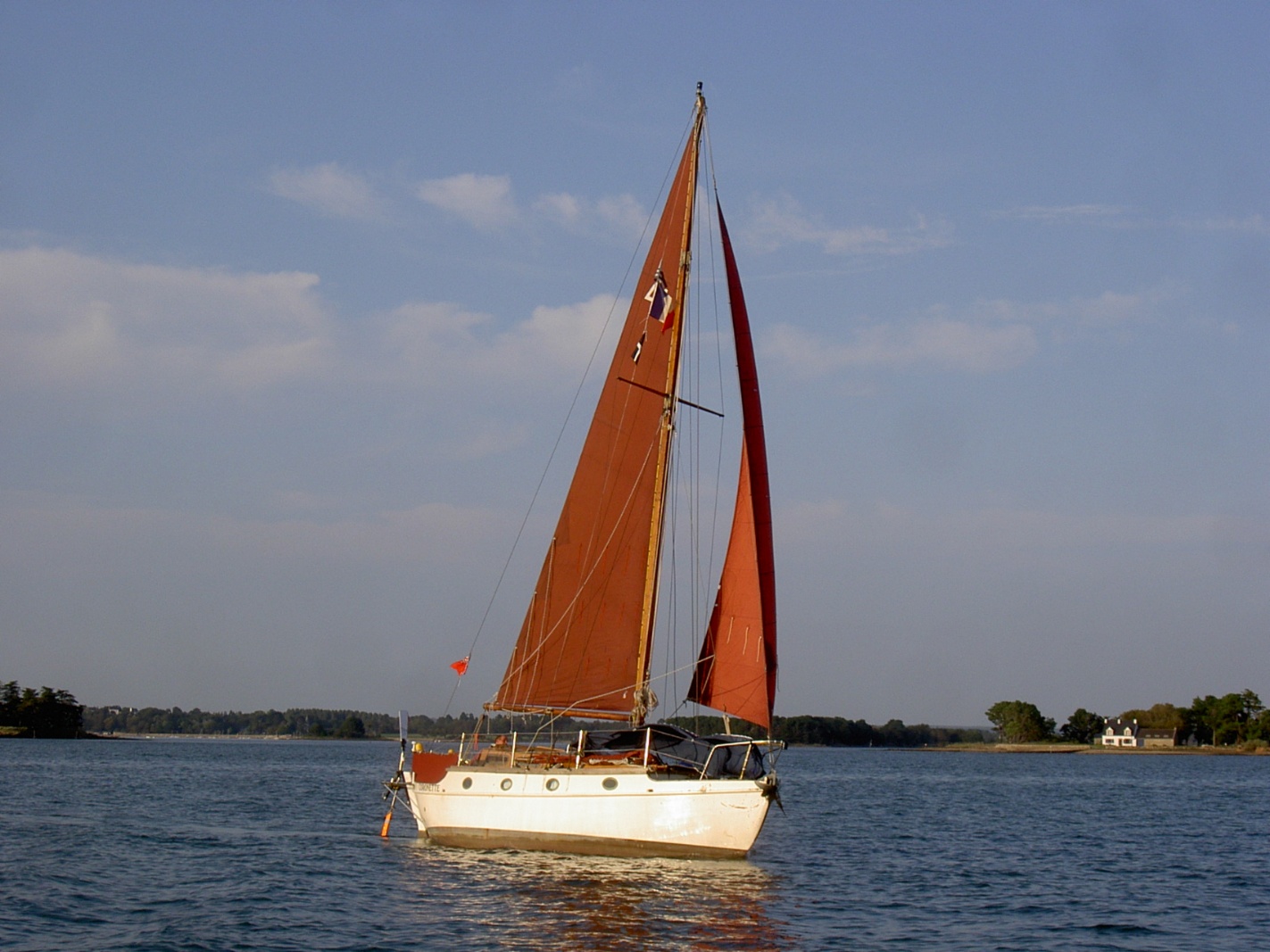

'Coronette'  Bill Booth's 'Tringa' class MG design, being hauled out Autumn 2003, in a yard I know well, at Millbrook, Cornwall.



Bill booth has made such a nice job on this boat we felt she should have a page to herself, it could have been on the restorers section, but we have made her a features boat,  Click here to go to her page.



A later pic of 'Coronette'  She is up for sale, Nov 05, see the for Sale page





This is a line drawing of 'Sixpence', taken from 'Dream Ships by M.G.

Where is she now?  David Ellis would love to know.... Well now we know!  Thanks to Andrew for this letter

Just a quick line to say that my father Bill Turton owned 'Sixpence' for many years. I can still remember travelling to the East Coast with my father to view the boat - it was painted an awful pale blue - everywhere!!


Based at the PMC (Penarth Motorboat and Sailing Club) in South Wales, Sixpence was raced very successfully, both crewed (sometimes by me) and single-handed for many years, and also took a large family on many fondly remembered holidays to Devon, Cornwall and the South Coast.


She was also entered in the AZAB (Azores and Back) race some years ago, sailed by Jack Taylor, also of the PMC. JAck's adventures in this race featured in an hour-long ITV programme which was available on video at one time.


My brothers and sisters all loved that boat, and were truly sad when she was sold. The last we heard was that she had been restored to her thirties splendour, and was moored somewhere in the Mediterranean. There was a sister ship 'Sequence' which also sailed from Cardiff at one point. She was almost identical except she lacked a bowsprit.


My father has many many photos of Sixpence, racing, cruising, or just holidaying. He also has many of MG's books, and once even met the great man at an Earls Court Boat Show.

Andrew Turton



This is Tinka, 'almost' another sister ship to Sixpence.  Seen here in Italy, where she went in 1988.



October 2006, Tinka has been sold and the new owner has been good enough to send in pics and offer the plans to us so we may scan them and place them on CD for all!    I have given her a page of her own.     (click on the underlined words).

Below are details of another 'almost' sister ship!




Here is 'Sequence'!  she also now has her own page! click here

Below are more extracts from an old YW magazine, from 1957.  This boat was designed by MG for his own use, he must have been sailing it in the early 1960's.  kindly  sent in by   Phil Bianchi.




This is part of the write up on her.

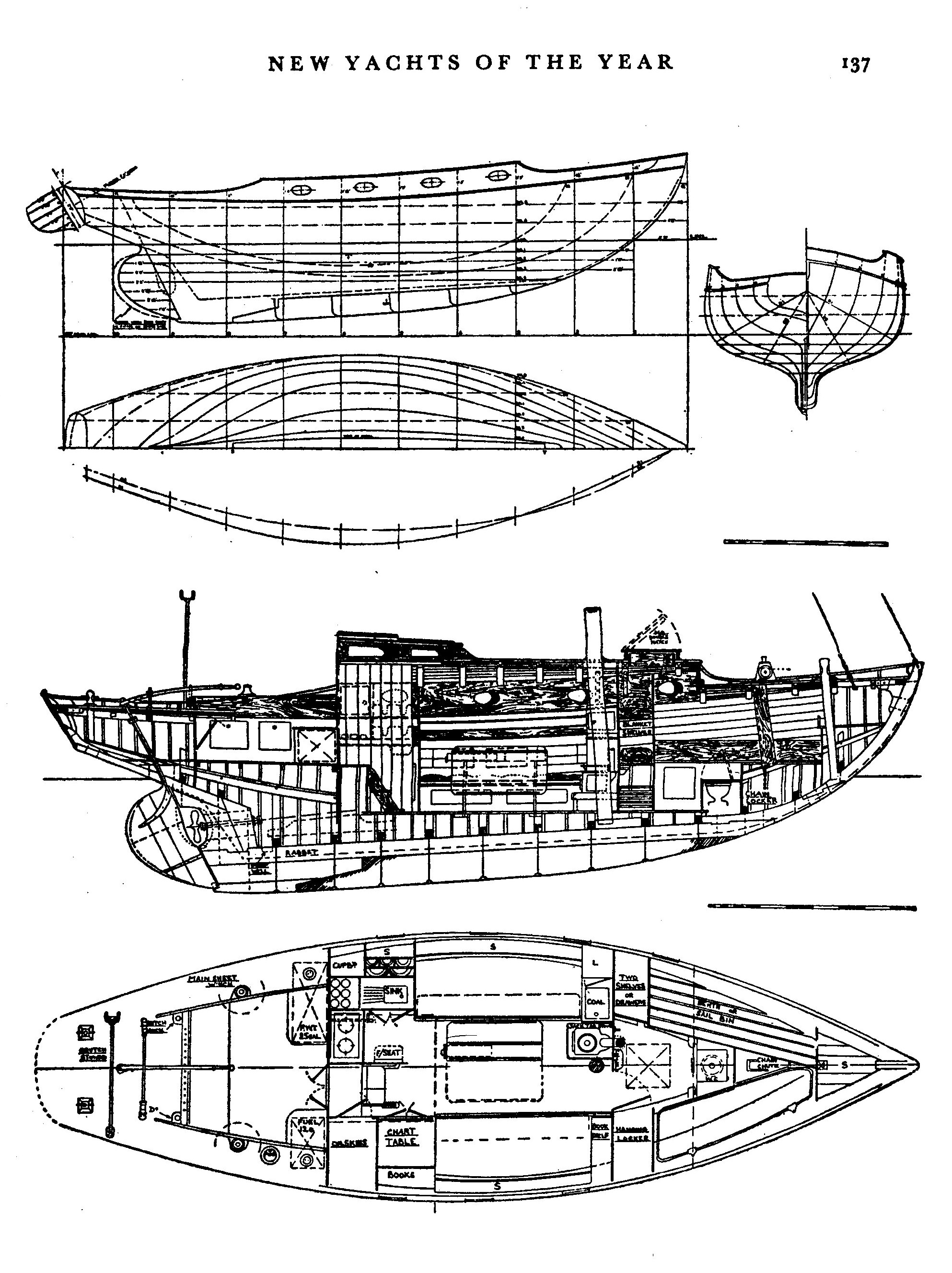

  Hull lines      The Sail Plan

     The accommodation.



click here to see her own page.



So the question remains, 'Where is sixpence'?

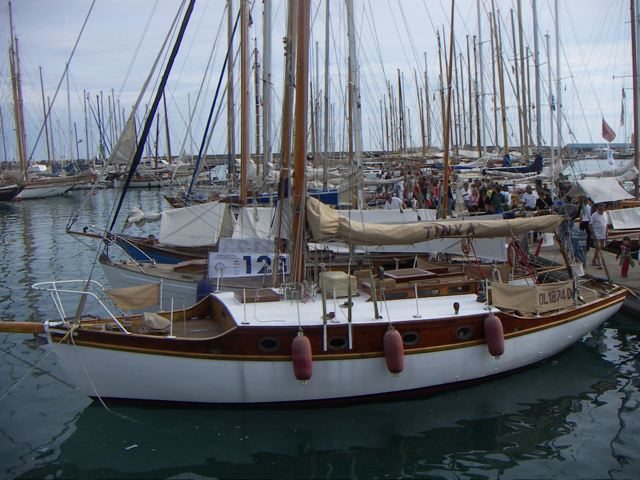

Tinka



The last seven pictures  of Tinka have been forwarded from Silvio in Italy, June 2010, along with the paper copies of the original drawings!  I will be having these scanned and will be able to send them out on CD to anyone interested, at cost! thanks Silvio, a generous gesture.  Your ship is a credit to you!



Here is a sister-ship, 'Koonawarra' alongside in Hobart, Tasmania, Australia at a classic boat event.  She is based in Victoria. Thanks to Associate member and ex owner of a  3 Tonner, Mike Field.

TINKA Class



BOAT NAME: Koonawarra
BOAT OWNER: David Bullen
LOCATION: AFLOAT, KF1-28 - 8
OVERVIEW: Length: 9.9m, (32' 6"), Launched: 1951, NZ Kauri Pine Carvel Cutter Designed by Maurice Griffiths and built by David Bullen Resides in: Victoria
HISTORY: Her owner completed a west-about circumnavigation between 1985 and 1990. Koonawarra has undergone a 10 year ground-up rebuild. Construction. New Zealand Kauri pine planking. Tasmanian Celery Top Pine ribs. Ironwood keelson. 2.5 ton lead keel. Perkins 4108 diesel auxiliary engine. Burmese Teak sprung deck. Spars-Douglas fir. Spotted Gum trims. Fit out below, African Mahogany & Ebony, buttoned leather upholstery. Aries wind vane fitted.

Wow that is a nice looking boat!

August 2015, we heard via Italian news that Tinka sank on her mooring in dock.  Efforts were under way to recover her. when this was printed on the Stoppress page we had this back from Chris Keenan!

didn't see the news on Tinka..



It wont hurt her, she's used to it. When I first inspected her she was underwater in Gosport, Portsmouth....

With a dive bottle and dry suit, I felt her curves in zero viz. Hole in stbd quarter and port bow, mud and sea and tide slooching thru her. But I felt those curves and smiled. I bought her on the spot. £2,500. Made plans, went back from Leigh next weekend and lifted her with plywood patches with pre banged brass Gripfast and sealed with grease and putty mixed on board to a "sloppy old mix" as my old foreman at Johnson and Jagos used to say.. lifted her with airbags, hauled her out in Campers, ..knocked in some good mahogany planks and caulked her, all 24 hrs. Stuck her back in and she hardly leaked. (till I sailed her home to Leigh then the old tarbut pump never stopped banging away in the cockpit) ..I laid on the scrubbing posts at Hardway yc. Rented a hi-pressure washer and blasted out all the mud, again. I did it in campers with a hose but not as good. She had , has, a harbour bung (ironic now eh?) And it all washed out thru there..

I stripped the old Volvo MD 25 down each cylinder, rigged a clean jerry can of diesel next to the engine, flushed it all out, changed the oils etc.. lifted the decompression levers, got her going at the fastest I could wind her, slammed the levers over and I nearly died,,, it bloomin well started and ran.....amazing...I gave it a few mins, let it warm not hot, stopped it, changed the oil again and ran it. Vibrated like hell and caused years of leaks as the beds were bolted thru the planks, but it never faulted or failed....loud?? wow,..



So she is no stranger to being under..

Brilliant Chris hope the new owner takes heart from that!

John





Maplin Class Ketch - Ocean Dove

"Ocean Dove"

Was first launched in 1959. She is a modified Maurice Griffiths Maplin Class Ketch. Her hull is carvel mahogany on Irish oak frames. She has a pitch pine keel and bilge stringers.

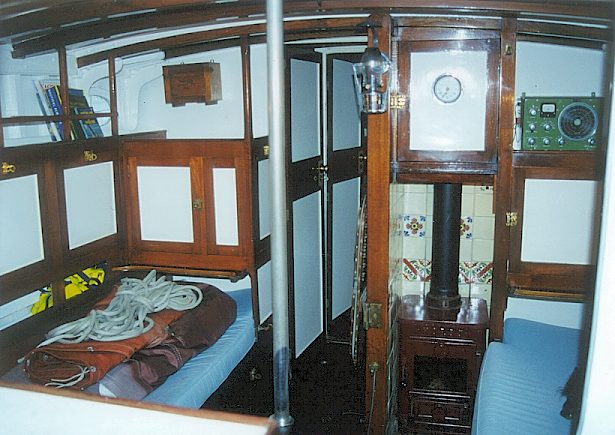

Maplin Class Ketch - Ocean Dove, interior

"Ocean Dove"

Lying Northern Ireland.

As a footnote I have just found an article written by Jim Andrews.  Jim wrote for P.B.O. for years and was best known to most for his Catamarans...  however in his book 'Twelve Ships a Sailing', he reveals he built this boat!  He also reveals that due to an accident with the frames, she was rather slacker bilged that she aught to be and so over built she floated a lot deeper than she was supposed to.  A lesson for all, try not to  alter  the designs.  The designer knew what he was about.

Seems she sailed all round the western Isles and Irish waters and always gave a good account of herself, where is she now I wonder.  December 05.

July 2010, we have just heard from the new owner, he has joined us, welcome Peter, he keeps her in Bangor Marina, County Down.







'Quiet Reach' In need of a little TLC.  Is the owner on line?  It is a M.G. Medusa. GRP construction, one of many built.  Must be a better pic of one somewhere!



Could this be the same Medusa?  she was spotted in March 2007 for sale on the boatshed website.




'Wind Dancer'  a Medusa 25 found in South Africa by Willie Laing.  she may have been called Zigg Zagg and is purported to have sailed out to Africa on her own bottom.  In which case she should know the way home, for Willie is refitting her for the trip back next year.  We want to read the log Willie!


      Lots of work to do yet!

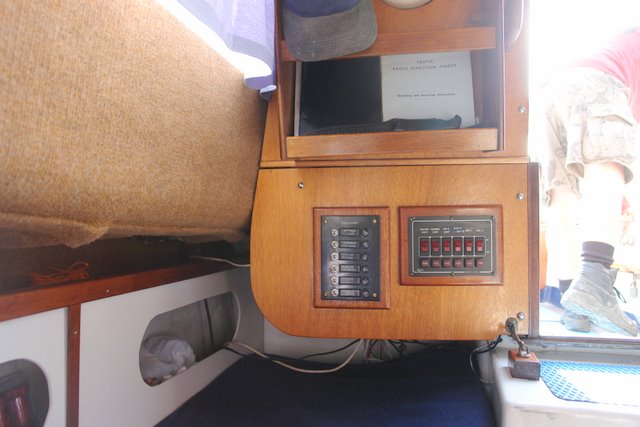

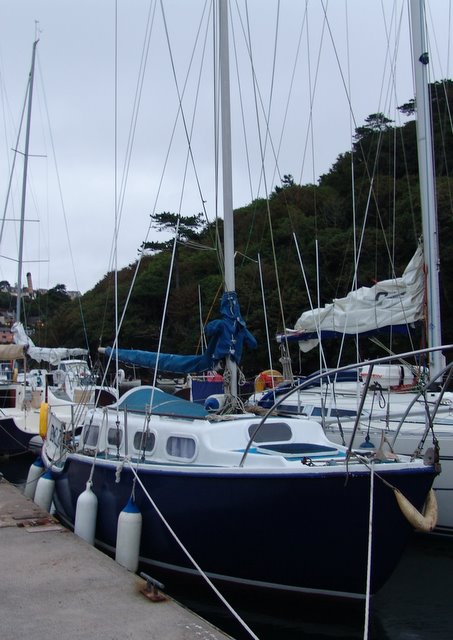

'Demelza',   Medusa 25 owned by Andy Webster.

Demelza came from Plymouth last year, 2009, she was moored in the Cattewater and was a brokerage sale from Tony Hole Marine - very helpful and obliging outfit.

We don't know much about her, being a brokerage, but whilst repainting her on the hard at her current home, West Bay Dorset, a visitor told me he knew her - had been moored next to her for a couple of years.  Didn't know the previous owner though.






PS any Volvo Penta MD series wizards in the group?




Anyway, she needed a minimum of work to use her right away - we brought her round from Plymouth via River Yealm and Brixham in July 2009 and she has been busy ever since.

Stripped and repainted decks over winter, took off a load of peeling Treadmaster, she's almost ready for a return trip to the Yealm in May, then.... who knows?  (South Africa may be a bit ambitious, but it's encouraging to hear about that journey - do you know who it was?



She looks very smart Andy and I bet she gets a few admirers...








  'Tina'  She was for sale,  where is she now? May 2006 the new owner Tony is moving her to Hartlepool and has just registered.  Solé 9 hp inboard now, boat undergoing refurbishment.  hope for more pics as refit goes on.

February 2016, sold a while back and now called Stratton's Fancy and moored in Scotland, owner now John O'Brien.







What is this ?  If  B. Micklewhite was the owner, is he still? I think they are two different boats.... not a Tidewater...? Bruce is in touch and working on her!  Can't wait to see the restored boat pics!



This picture and the one below were sent in by Bruce Micklewhite (The owner) so that answers one question, however - what is she?  Thanks to Mike Field in Australia we believe she is a 'Swin' class!

The Swin was designed jointly by M.G and  Alan Buchanon.








Another one from Bruce Micklewhite, is it an MG? Note Centre cockpit. Again we now believe it to be a 'Swin', but with a centre cockpit?!   Hope the owner sees this and contacts us. Was for sale in an Essex boatyard.  No further details known?? Oh yes they are, see the for sale pages!  Peter Larkin, a fellow marine engineer is selling this boat and has sent details and another pic! she is indeed a Swin class but heavily modified when built, very different!



This is the other view of the 25ft boat, believed M.G. design, possibly a Swin class, stretched slightly and modified by Parsons of Leigh in the building?    Sept 2004 update, Andrew Wallace, one of our 221 registrants, has bought her and is working on her to be afloat next year we hope!  More pics to follow!  It  allegedly is based on  a MG design!  the 'Swin' class built locally by Johnson and Jago of Leigh on Sea, but centre cockpit!



'Misty II'  Andrew Wallace has sent these latest pics in.  Misty is undergoing some repairs and Andrew hopes to be afloat next spring!



'Misty II'  A view into the aft cabin.  The frames up on the left have already been doubled, but Andrew is laminating new ones in...



The main cabin.  Andrew admits it is a bit cramped, so is going to modify it slightly.  removing one of the berths and junking the galley etc to all be replaced by new.


This bunk had a very odd set up, one foot under the locker, the other on the edge of the bunk?  Andrew is removing this one.

August 2005   'Misty II'  ready for launching, looking immaculate!

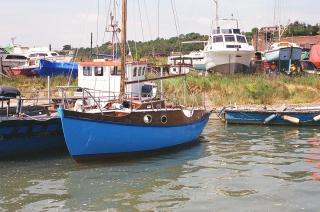

Afloat again!   Look forward to crossing wakes some time in the future!



These last four pics taken in April 2006. By chance I was in the area and spotted her.



Sitting in the mud at Leigh on Sea.




My Swin class yacht ‘Moonraker’ was built here in Victoria,  (Australia) professionally in the 50s.

I will join the group and write about the boat soon, every spare minute is going into the boat.

I have seen many wooden boats as a specialist wooden boat shipwright and have rarely seen a better built boat this one, beautifully ribbed and fastened with strong floors. All the screw fastenings are monel.

She is built entirely of premium NZ Kauri, full length planking, with hardwood frames.

As far as I can tell from the book, she is built exactly to the plan.

 Do you have the edition of yachting monthly, we have almost an entire library of Y.M. magazines here, I have one on my desk March 1932.

 I have poured over your website and seen that the ‘Micklewhite’ boat is undisputedly a Swin class yacht exactly the same as mine.

 I have seen nothing to support a Centre cockpit design Swin class with an underhung rudder, therefore the centre cockpit boat,  I think it might be a stretch to call it a Swin?  (Eds comment. yes we have seen the letters she is only based on the design and severely altered to a clients whim).

 Wayne Parr

Wayne at woodenboatshop.com.au

www.woodenboatshop.com.au

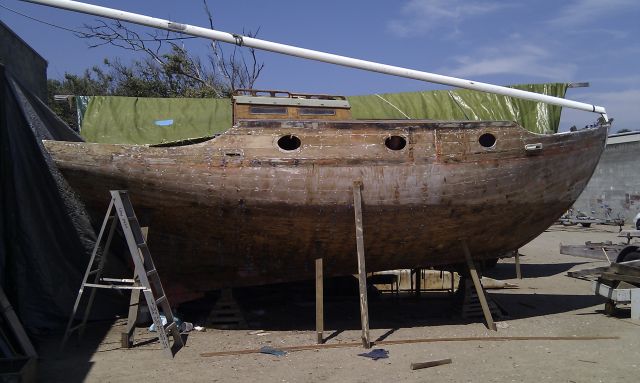

And below, here is Moonraker!





SWIN



BOAT NAME: Moonraker
BOAT OWNER: Wayne Parr
LOCATION: AFLOAT, KPWN - 6
OVERVIEW: Length: 7.6m (25'), Launched: 1953, Kauri Carvel Sloop Designed by Maurice Griffiths & Alan Buchanon and built by W.G. Hughes Resides in: Victoria
HISTORY: Moonraker was built for Mr A.E Friee of Hawthorn Victoria in 1953. Her design is directly out of the Book Dream Ships by Maurice Griffiths. Through the 60s Moonraker was owned by a syndicate of sailing women who starred in a TV interview sailing aboard her on Port Phillip Bay. Moored until recent years at Sandringham Yacht Club she has always been known as a popular iconic boat. Her construction consists of a Jarrah keel, stem and stern post, Spotted Gum frames stringers and gunwales and full length New Zealand Kauri planking. Oregon transom and deck structure. A professional no expense spared restoration over three years (2010 -2013), has included full removal of the paint, internal fit-out, floor timbers, mechanical and electrical components, major fastenings, cockpit and every fitting. All fractured frames approx 50% have been scarf repaired or replaced. New floor timbers fitted from stem to stern. New engine beds, stern tube, chainplates, keel bolts, sole, cockpit, chaffing battens, skin fittings, tanks, electrics, stove, refrigeration and so on... The original fit-out including the ceiling has been reinstalled maintaining the original configuration of the boat which works well due to the huge amount of room the raised deck design offers. Original cast bronze fittings have been re used with several vintage additions that have been sourced locally and abroad. A new gaff rig has been built complete with Oregon spars, wooden blocks, hand spliced rigging served with marlin and laid halliards. A true representation of the designer's and builder's original concept.

 Our thanks again to Mike Field for sending this in, captured at  a classic sail event in Tasmania!












'Tugela'  Owned and sailed by William Challis out of Woodbridge.

She is a 'Finesse 27'   jointly designed, we believe, like the 24ft version, with  L. Harbotell and M.G. Built by Platts boatyard of  Leigh, Essex..

'Tugela' Seen ashore so we can see her lines and bilge keels!

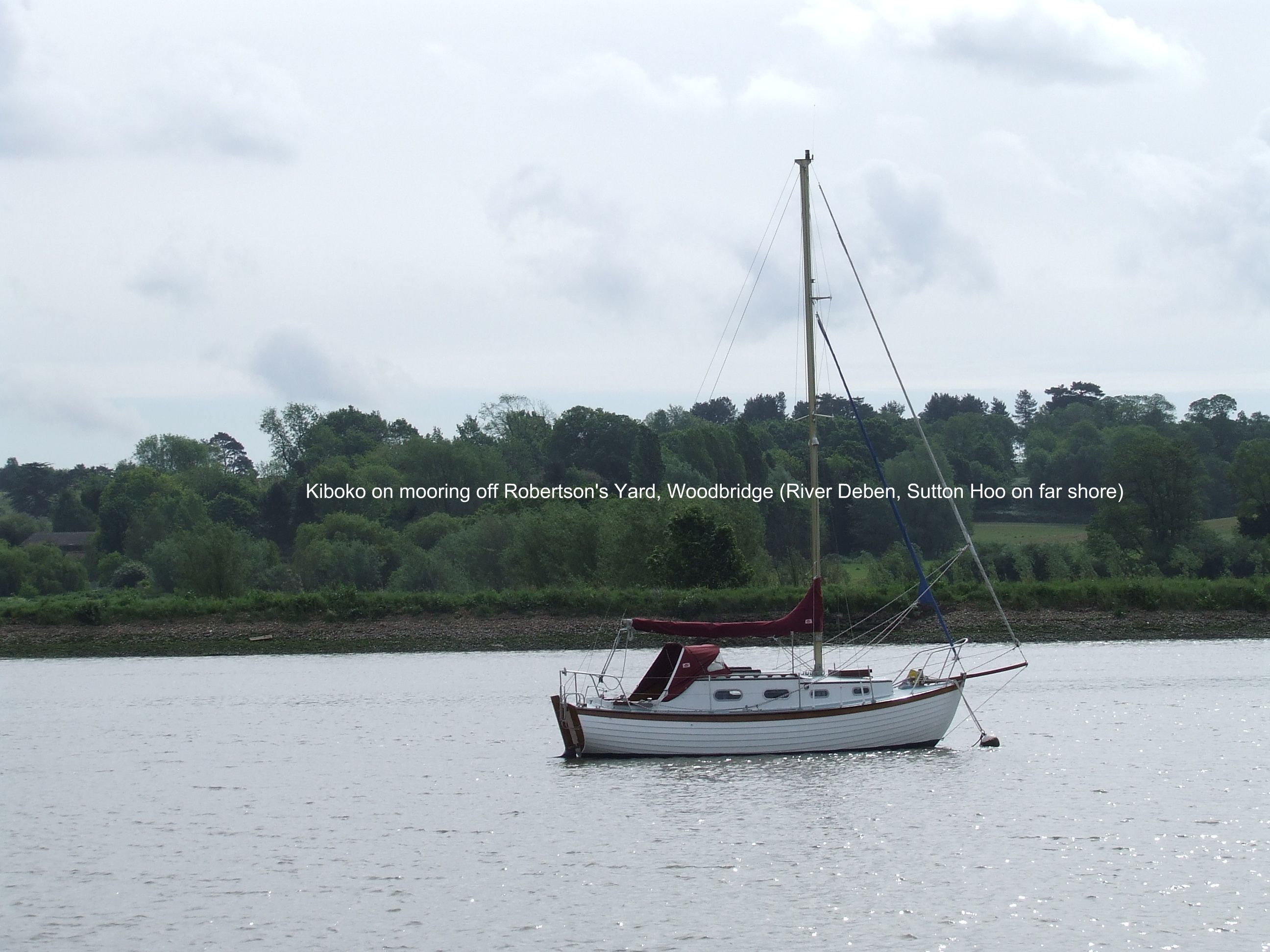

Finesse 24 'Kiboto' on her mooring at Woodbridge. Owner, John joined us September 2011.


Another 'Finesse' near Osea, May 2004.

An extract from a letter regarding MG and the Finesse class from Alan Stacey

Alan Platt certainly told me about the initial poor performance and subsequent revisions of the Finesse. (With MG)

I spent a very pleasant few hours with him in his yard at Thundersley on two separate days some years ago . The first being when I asked him to make me a new mast for Stella Marie (receiving a severe dressing down for breaking one of his masts) The second day being when I collected my smart new one.  I had cause to be near Southend about two months ago and went to see if he was still around. The yard is obviously closed and a house or two built on the site. So it would seem that another yard building "proper boats" has gone.







'Capricorn' another Finesse, from the net by John Stevens.


'Maplin Maid' on her mooring at Tollesbury, owned by Scott the vicar from Walton now!

Another view of  'Maplin Maid'

'Maplin Maid' again.  Scott has contacted us to correct me, She is a 26ft Bawley!  I would have thought she was at least 2 ft bigger!  She is for sale February 2016.




I have had this in from member Chris Keenan, Former owner of Maplin Maid and blue water sailor!

I kept Maplin Maid for a few years, the previous owner, Fred Aurtherell, also did,  before me, in this old bomb hole off Small Gains Creek, there was enough water to scrub her off at low tide. Fred always told me he thought Hitler was not such a bad bloke for giving us this nice big hole with loads of water to scrub off with!!

One winters night she went adrift. January gales. I went out in fisherman's skiff to look for her. I found her on the mud by Two Tree Island, she had let her riding scope get caught around her bridle anchors. the power of chain is amazing and she wound the 2 anchors together as she was wind rode then tide rode  as she swung. When Fred saw the ball of chain and anchors sticking out, he exclaimed 'Christ we caught a mine'. I laughed so hard I sat down in the snow covered mud.  At Five in the morning in a howling gale miles from anywhere on a freezing night, I did not laugh much longer.


I worked at Leigh, Johnson and Jago's,  1972, 73. J and J's had long since stopped building 6 tonners and the ones I knew were all like MM, full length keel. Moon river of Maplin had bilge keels fitted by us so she would sit upright of Thorpe bay. She often made a drop thru somewhere, so I was told. Fred reckoned it was because she pounded a bit on the foreshore as she took the ground. Maplin Maid was always as tight as a nut. There were one or two  5.5 tonners around, a bright red one, I saw her a lot up Lawling creek or the next one up, she had a bowsprit and bumpkin. The beach boats built in J J's like 'Grace Darling' and skylark, were all built with plates, 'Skylark' used to sail into Chalkwell beach and take out trippers. As a nipper, my job was to look after the plank whilst they took out trippers, I
got paid a tanner for a tide. eventually Mum took me on a trip, I was mesmerized by the muddy water being churned up as we crossed the flats..  that was it for me, I was set for life, I was about 7. had no chance since.  I tried to buy 'skylark' but she was chartering off the pier or something?? He wanted 20 k??  ah well.


'I have some old photos of when we were repairing 6 tonners  as we called them, the Bawleys.  I think the Cocklers we called 5 and 'alf tonners.  (This was because we also repaired the real cocklers and bawleys,  like 'Renown', 'Valiant'. 'Navigator', 'Letitia 2' and little Stevie Meddles 'Ranger 3'. she was the first to have a fwd 'wheil'arse' ...)  The latter are of course the commercial fishing boats!  I will look them out!

Thanks Chris for the memories!

An update 2015, Chris has sent a link in to his new website.   www.cksailing.com



This is 'Chloe of Mourne' another 38' Francis Drake class (Similar the the Golden Hind. )

She is presently undergoing a refit and  the owner may part with her in 2005, watch this space!

      This is the interior of 'Chloe of Mourne'

January 2011 a very sad looking Chloe was for sale on eBay for £10k.....



'Evenstar', No not a big Eventide but indeed a steel 'Vulcan' design by MG.  This one was found at Maldon, Sept 04, the owner saying he had just bought her and was interested in us, I will drop in a welcome pack to him.  He thinks he has a years work to do!  Dec 05. I am pleased to say that the owner, Douglas has registered.  We hope to see more of this fine ship! We have noticed that the boat is looking tidier and shipshape now.  just have to catch him under sail!


Another Steel Vulcan?   Roberto Barco's boat




'Odyssee'  another Vulcan class, this time in the Netherlands.  October 2007, just sent in by the owner, Eilard, from Amsterdam, who has just enrolled.



'Odyssee'  Looking powerful and polished!  The Vulcan is a strong looking vessel!

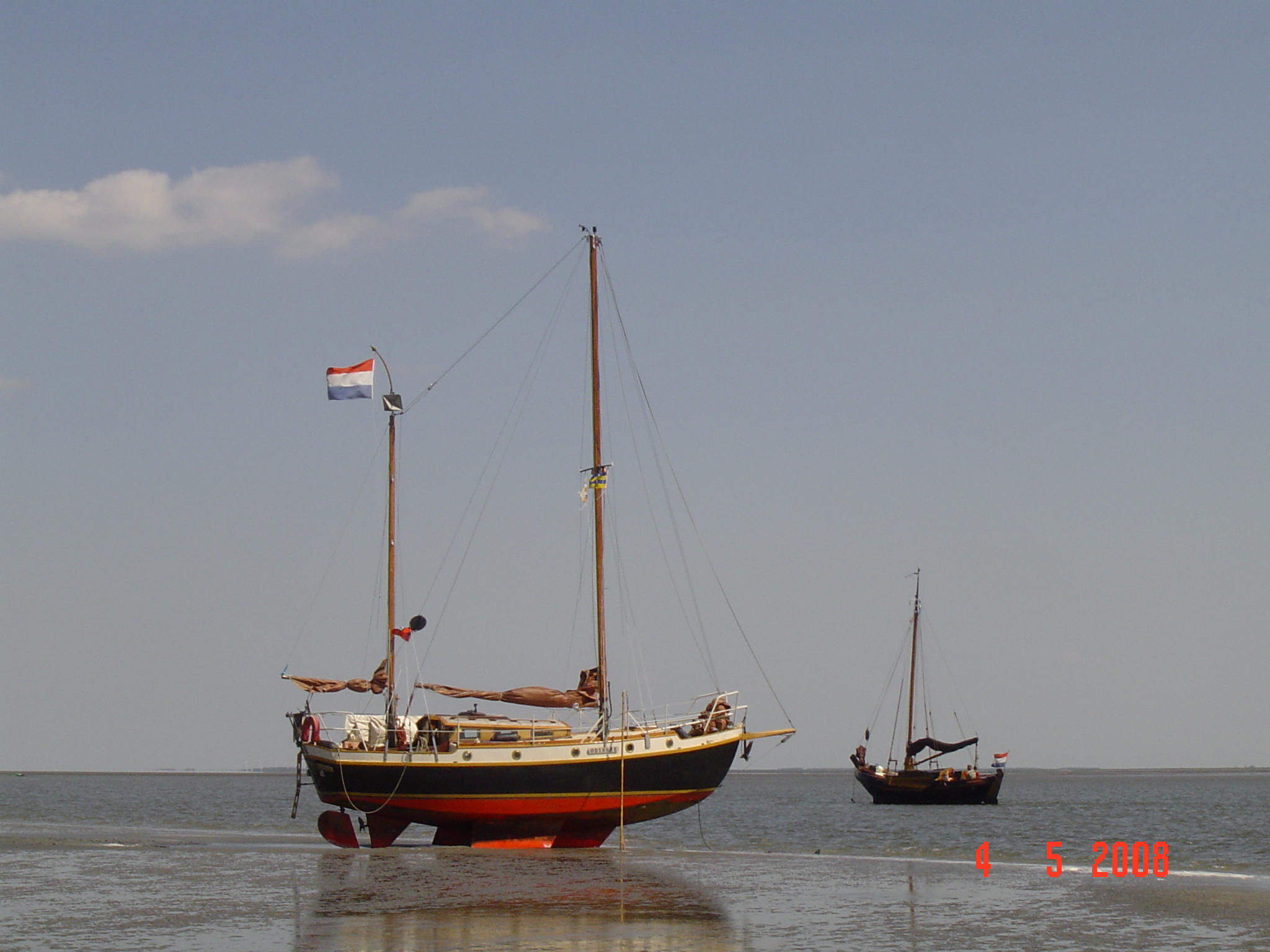

'Odyssee' high and dry, showing how these strong steel vessels can dry out on a hard flat surface and still be comfortable.  The ship put is aground at low tide south of the island of Ameland.



'Odyssee' Latest pics in for Eilard May 2008, sailing near the Island of Terschelling in the Dutch Waddensea.  Looks great Eilard!

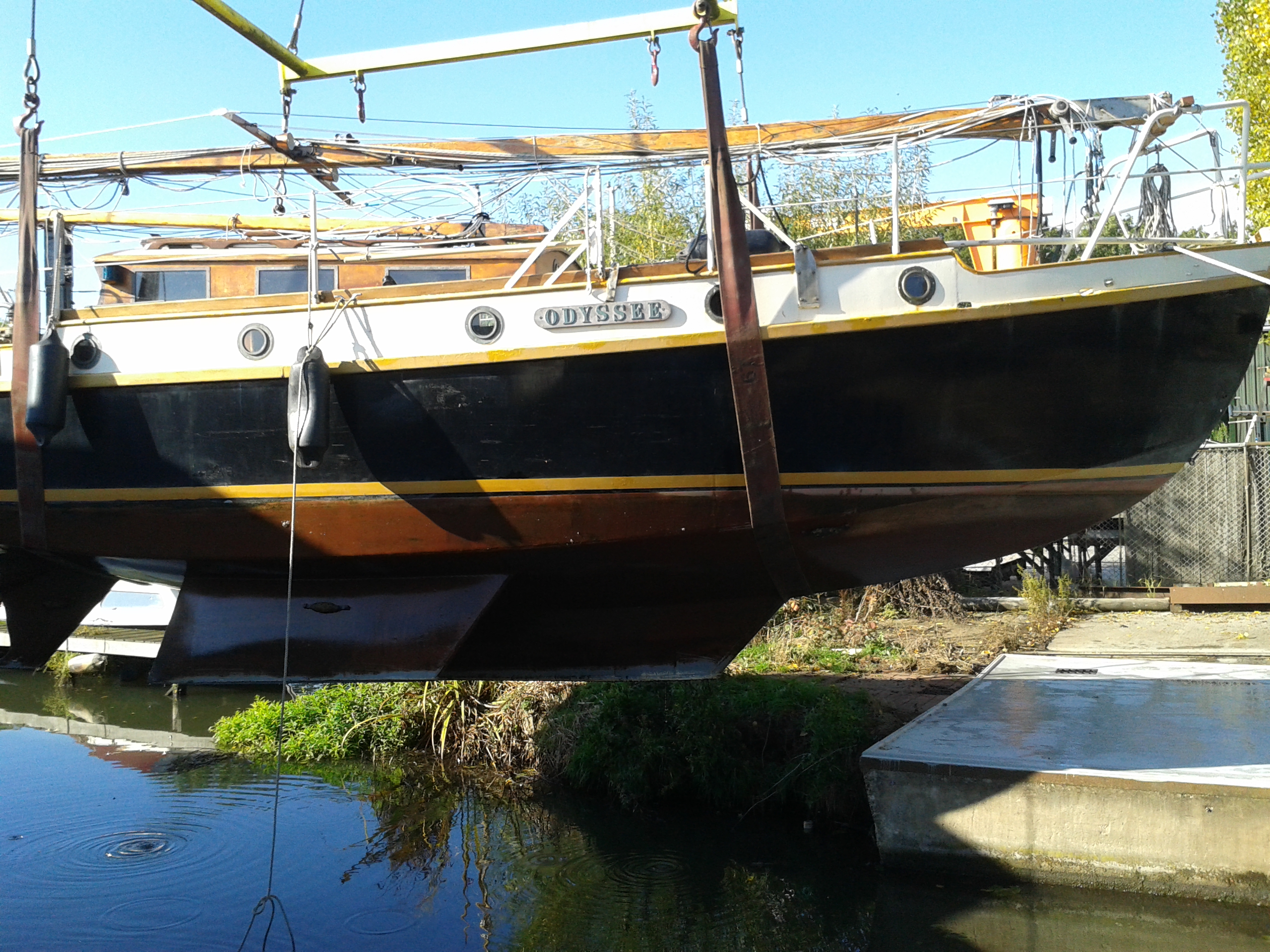

November 2016, Eilard has hauled out, now scrubbed and sorted.



And lowered back into the water for the winter!



Ready to sail March 2017!




'Adora' 31ft  steel  Vulcan owned by Florence down in Devon on the River Dart.

She is up for sale, see the 'for Sale'  page.  April 08.

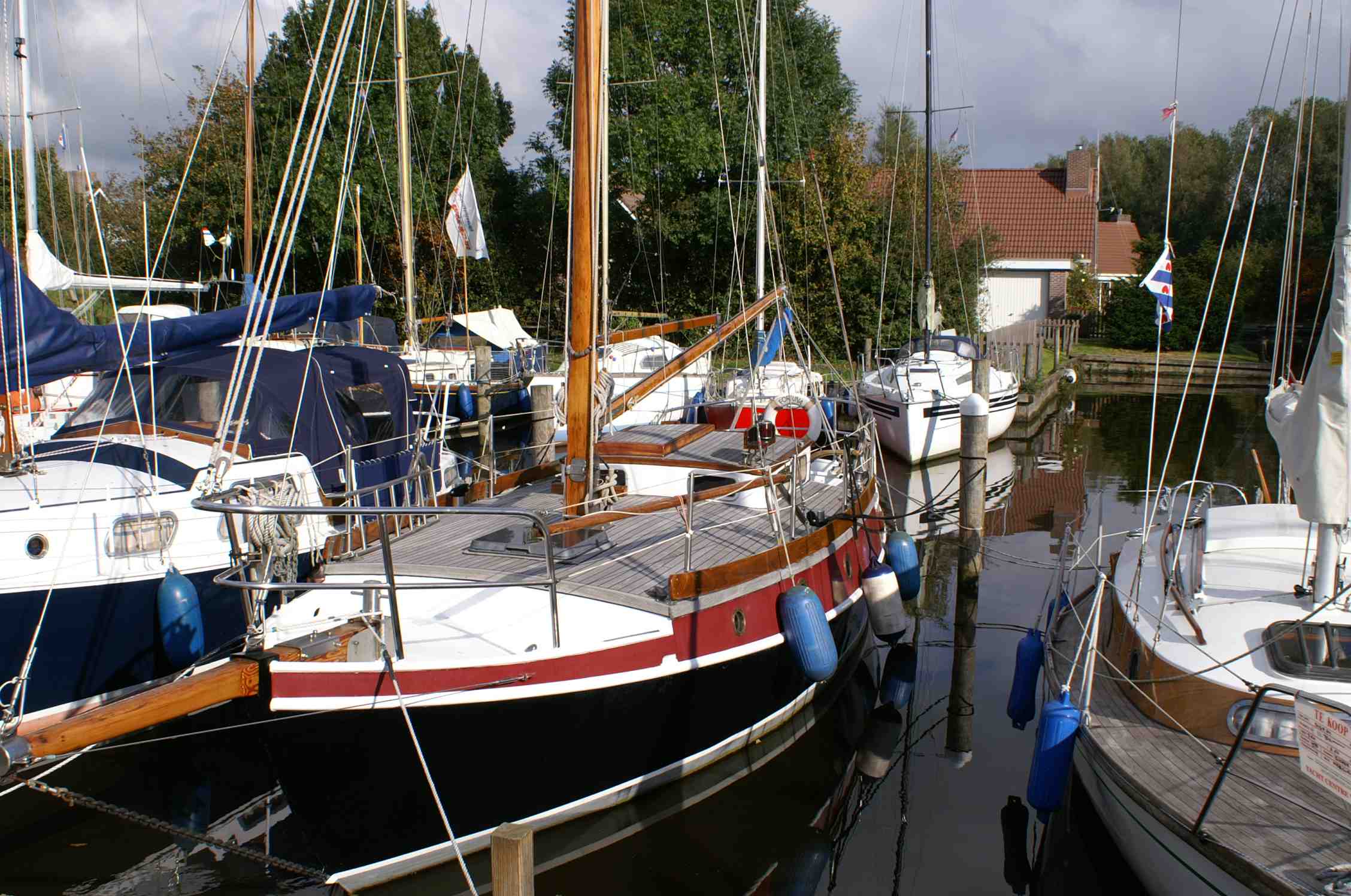

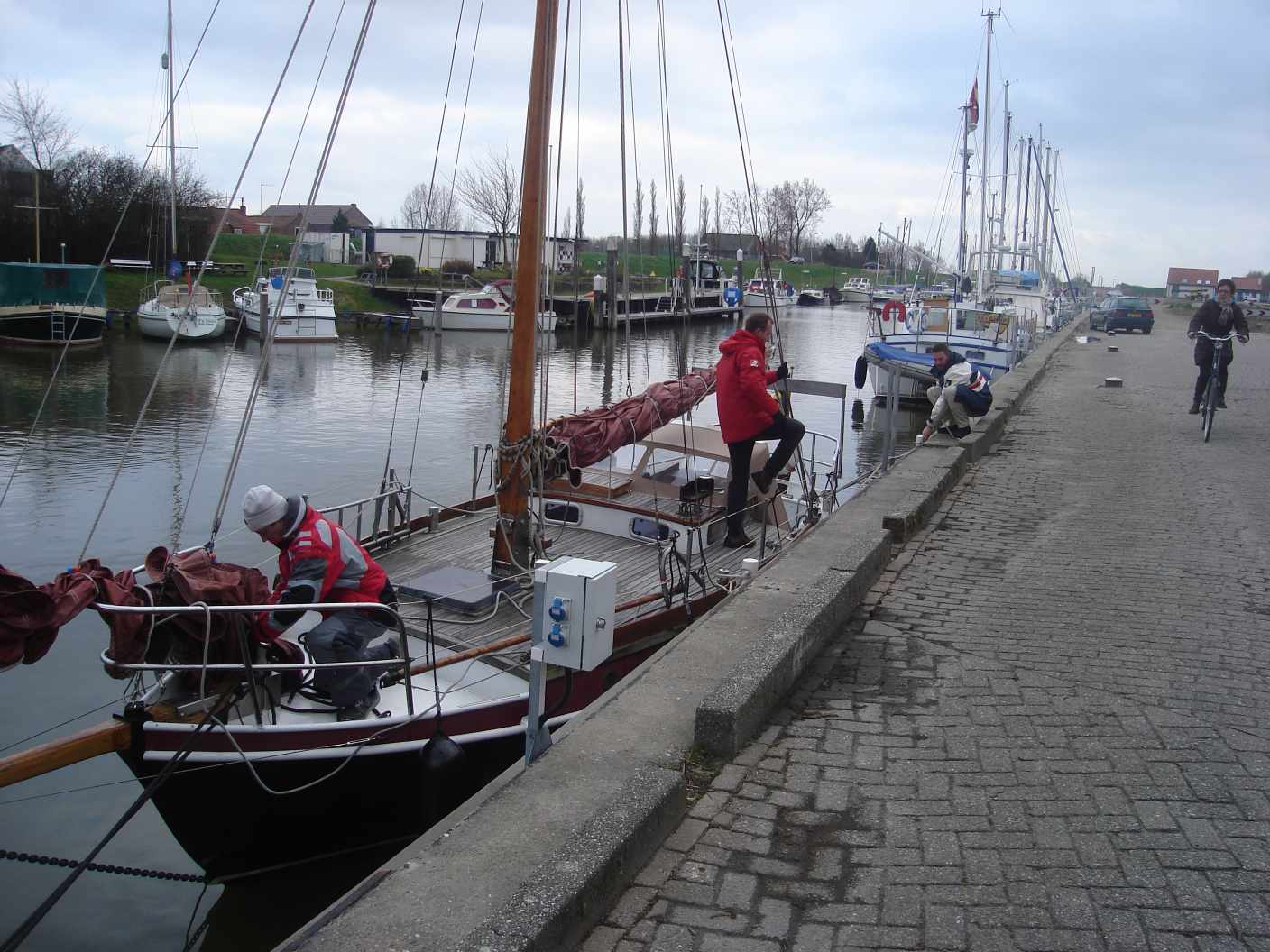

'Fortuna' a steel 30 ft boat that looks so much like an MG design, but which one?  the owner thought Kylix, but I think not, maybe Vulcan or a modified Barcarole..  any thoughts anyone. She is Belgian flagged and in Holland by the look of the pics..  hoping to get more measurements from Marc, the owner.





Whatever MG design she is, she is certainly looked after!  If that is you Marc, you should look pleased!  Yes it is Marc and we now believe she is a Vulcan.  We have been able to put another Vulcan owner in touch..




  March 2009 and 'Fortuna' now sports a very smart new spray hood.  Marc says he may try to get to the Essex Coast this year, he has a bright new burgee, we will watch out for him!

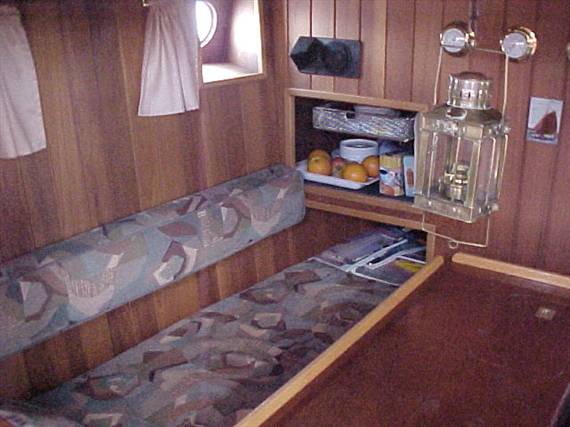

May 2009, out sailing in Holland, Marc at his Galley, very traditional Blakes Paraffin cooker as well!


            Plenty of room on deck here!



   Alongside or on a pontoon, she is a fine looking ship!

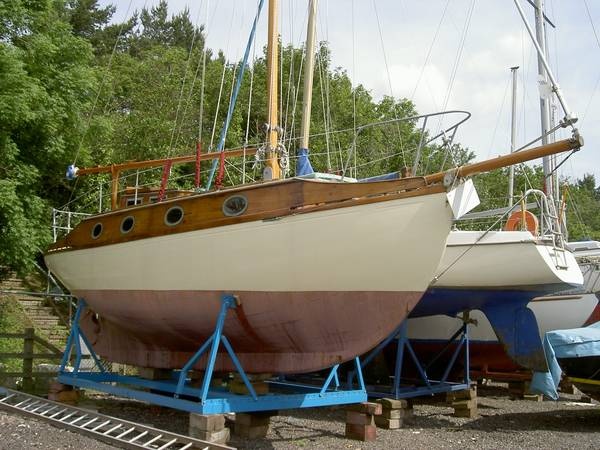

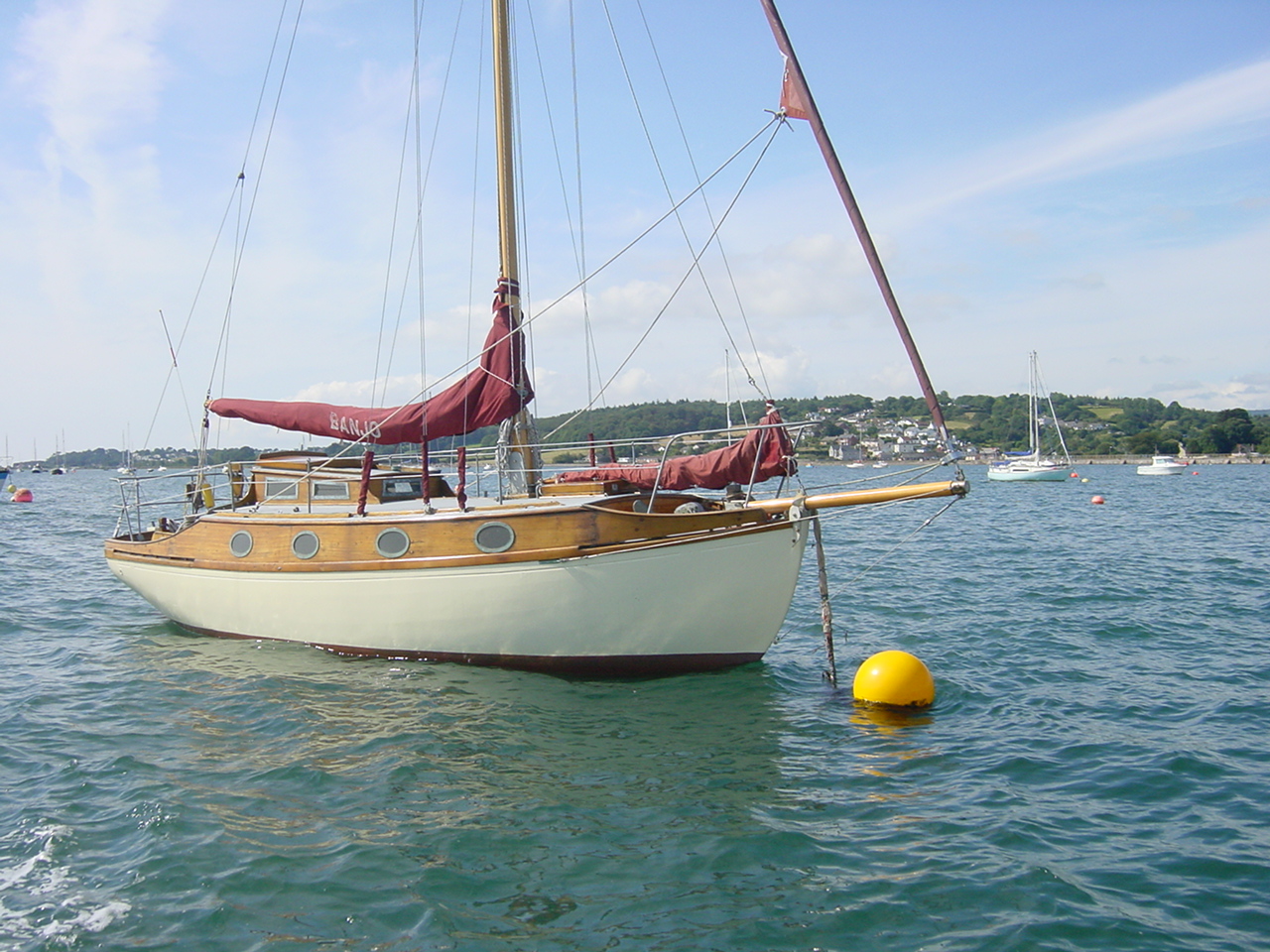

'Banjo'  A MG Bawley class    We have just heard from the owner, Antonia.  See the pic of 'Maplin Maid' above!

Do we know any more about Banjo?  I seem to remember seeing her on the Blackwater years ago, she is now on the Exe.  Was she in an M.G. book or Classic Boat?   We have put the owner in touch with our Lone Gull II rep.  J.W.

I have just found your web site whilst doing research on my Thames Bawley 6 tonner. It seems that you are creating some kind of data base on Maurice Griffiths designed boats. If you are interested you may have a photo or two of mine at present called 'Banjo' I dislike the name and so may change it.
She is 26 ft overall plus bowsprit rigged as a cutter. Built by Johnson and Jago in 1965. Mahogany on Rock Elm frames. She is in excellent condition.  Antonia.

      These last three interior pictures of 'Banjo' show just how nice she is..  and Antonia is going to keep the name too!  Pleased to hear that.  Now where have I seen that picture of her, was it East Coast rivers maybe??

  We are pleased to say Antonia has now registered with us so are able to put her in touch with two other Bawley design owners. Hope the information exchange is fruitful! She has sent another couple of nice pics too!

April 05, Antonia is back on the water, and having sorted out the rigging, and managed to get the heads door open again after they tightened the rig excessively, she hopes to get out sailing!  Looking forward to more pics.  Glad the bush telegraph we have worked for you, She has been in touch with several other owners!

Re Banjo.

      I owned Banjo from 92 to 95 and kept her in Conyer Creek, Kent and sailed her in the Thames Estuary.

      I bought her from Mike Godfrey (Marine Engineer / Admiralty Surveyor) who had owned and restored her for the previous ten years. I continued Mikes update and restoration until divorce forced her sale to Alan Gimes.

      I have most of her history of original build and restoration. She was built for a friend of Maurice Griffiths and is to a far better specification than usual.   Stephen Dodge







'Fortuna'  Another MG Bawley, this time only 22ft long....   Thanks to Jenny and Nathan for this pic, We have been able to put all the Bawley owners in touch, after they registered!


'Fortuna'  April 07, Jenny and Nathan have just been in touch to ask if we can advertise her, you will find her on the   For Sale page.  she is a splendid MG boat!

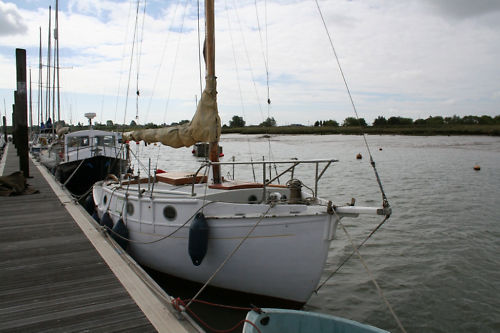

'La Deselsa' is  Maurice Griffiths Bawley Yacht built by Johnson and Jago in 1962. Carvel built of Mahogany on Oak with a long iron keel she was substantially re built in 2001. The deck and Cabin top are all new in marine plywood sheathed on GRP. All deck beams and carlines have been renewed as are all keel bolts.



She was fitted with a new Yanmar 3GM 30 F 3-cylinder diesel in 2001, that has done only 200 hours. Currently used as a fishing / day boat, she offers accommodation for three with a galley and basic heads.



2011  she was found on the net for sale!  Now under a new skipper and seen in Essex waters by a member!  Waiting for the enrolment!


Looks very smart.  Alongside the pontoon at Brightlingsea...

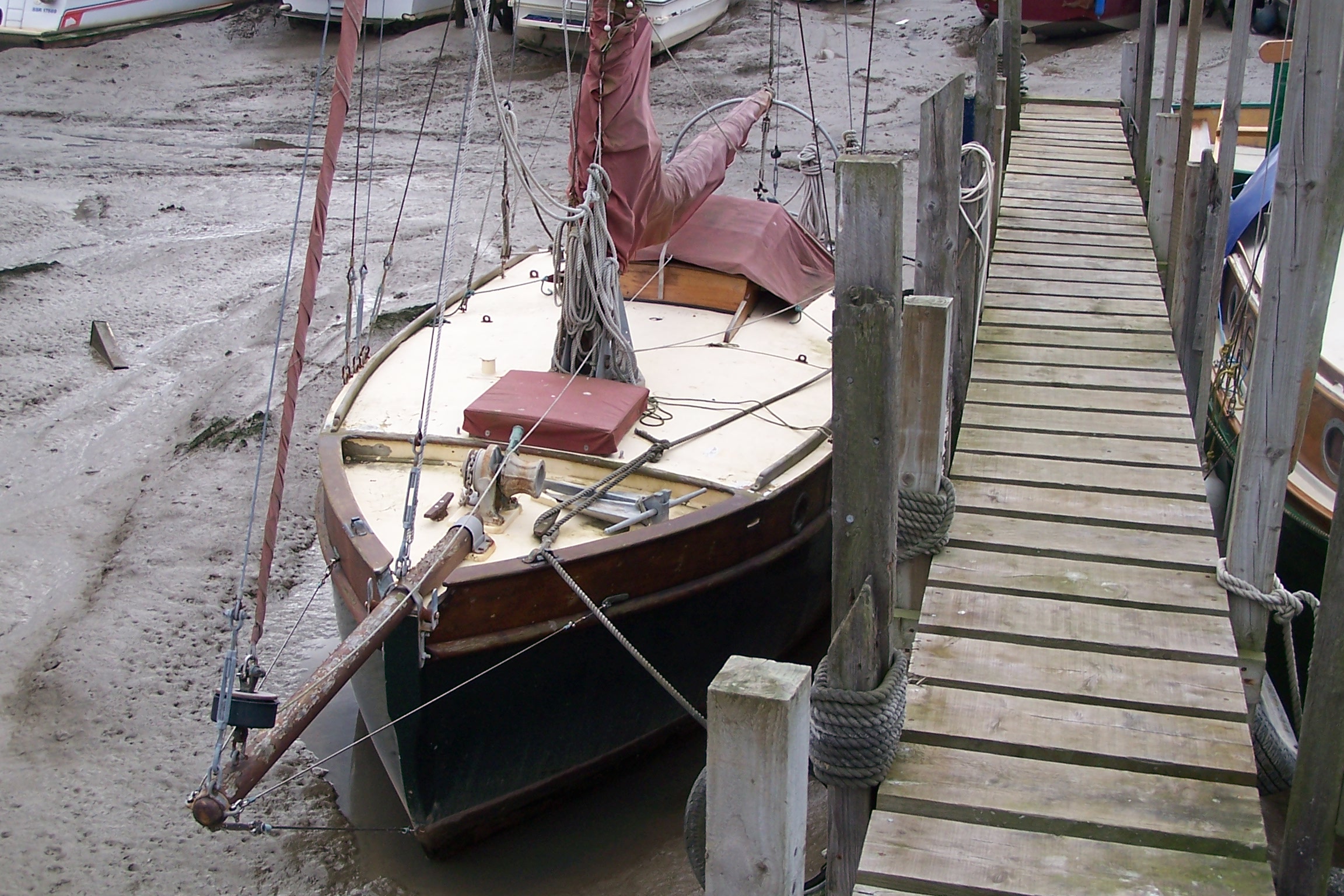

'Taloa' is a 1950 Thames Bawley built by James Cook at Wivenhoe.

October 2008, Roger Galley has her for sale on the 'For Sale' page


She is 25' long, 30' overall including bowsprit and bumpkin. Beam 7' 11", displacement 4.5 tons approx. Draft 3'6".



Carvel construction, inch mahogany planking on oak frames, copper rove fastened with an iron ballast keel. Bermudan cutter rig. Aft cockpit with tiller steering. 2 Cylinder sole diesel engine.

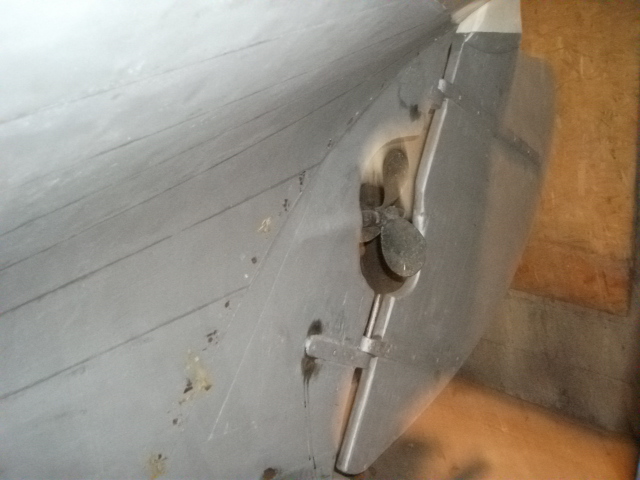

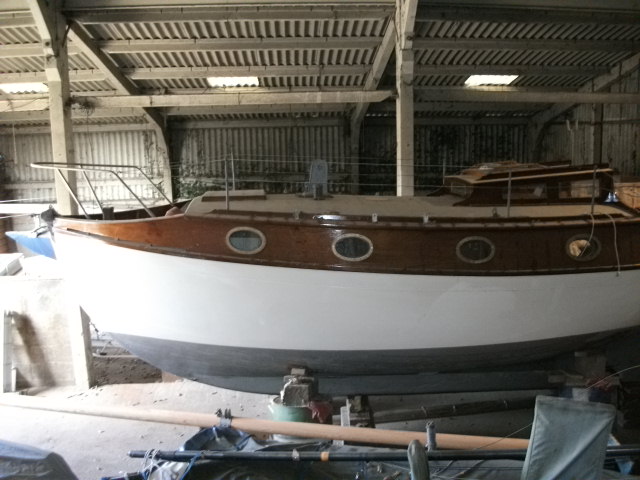

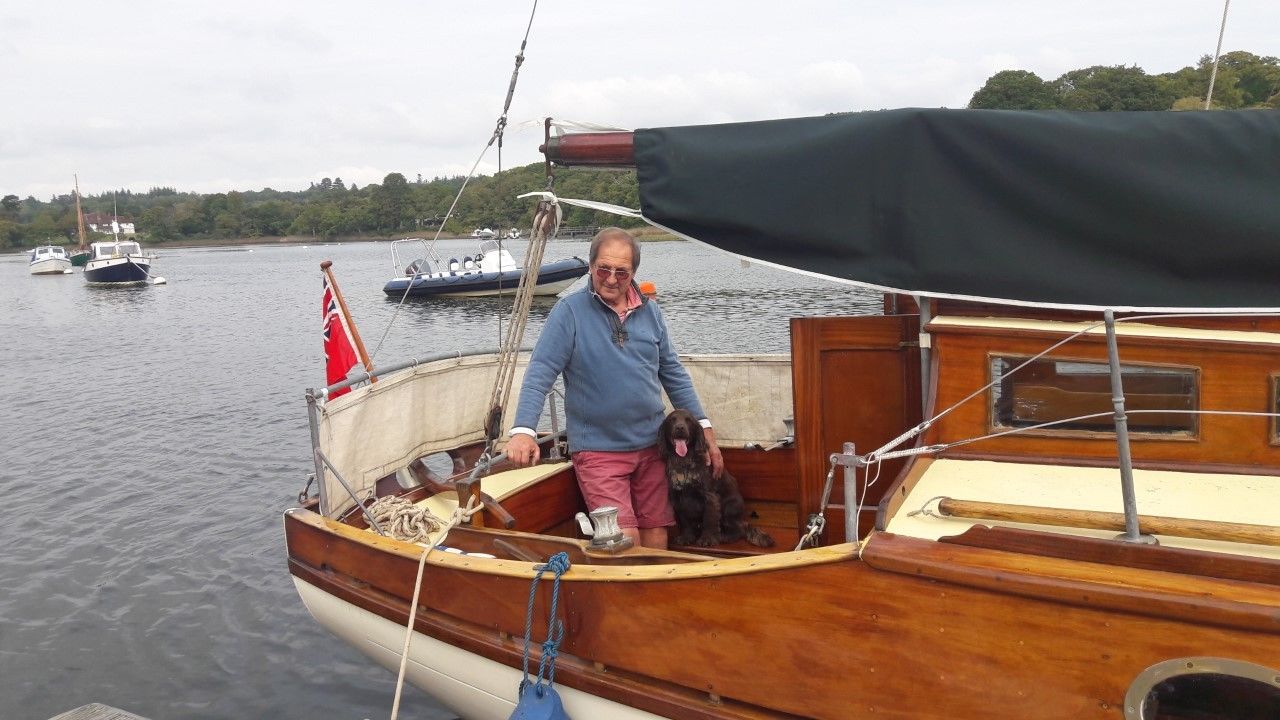

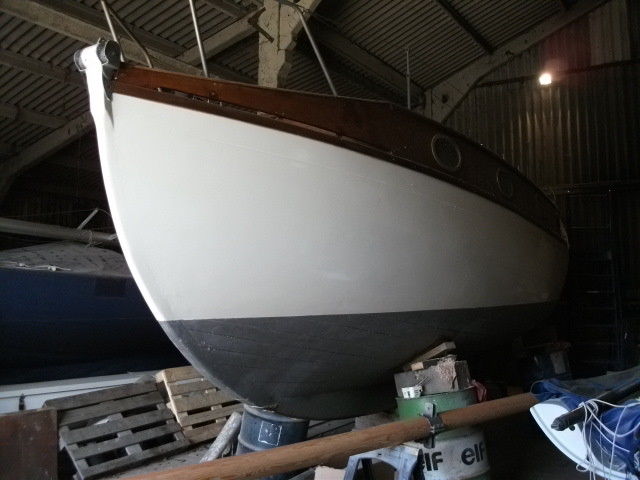

This is 'Kittiwake'.  A 26ft Thames Bawley class.  She is ownered by Goeffrey Barker and has been totally refurbished over the past 12 years.  She is FOR SALE, see out page, click the link...   not quite finished, you just need to add water!



The standard of finish is superb



the paintwork gleams!



the interior is dusty, but all clean and newly varnished beneath the dust!



Every part has seen restoration.



There is a transom to be proud of!



From deck beams to companionway steps all sorted.  just need a duster!



Cosy interior



New mast and even spick and span heads!







'Kinvara'  Certainly an MG, but which one?  She is 36 ft loa, built of steel, in 1980. Her first owners sailed her for 7 years around the Pacific?  Any one know who that was? Colin reports she is of 4'6" draft , a gaff rigged cutter with bowsprit and solid dodgers. She has old style opening deck hatches and bronze opening ports.

'Kinvara' Close up of the foredeck.






Here is a delightful picture of 'Charon' A sister ship to 'Tamaris'  We have given her a page of her own, please click here to go to it.

She is sailing in Australian waters!

This is  'Tamaris', seen alongside the quay in Cork in 1988.  Picture from a website somewhere courtesy of Gary Hamilton.  Do we know which web site?

Feb 09, info from Ed and Helen Geasly,  they say she is still lying in east ferry marina where this pic was taken.






2012, 'Tamaris' with new mast up and  sails hoisted fitting out and finishing off nearly all done!


Tamaris was up for sale

Maurice Griffiths own 6 & 1/2 ton yawl

Built in 1949 by Johnson and Jago  Leigh on Sea Essex.

28 ft. 7 ̎wooden Carvel hull (full original specification see YM. edition  August 1949)

three berths, 2gm Yanmar inboard diesel, sounder, compass, and vhf  and two ringed gas hob galley and heads,

new mast and standing rigging, tan sails, fair to good.








Is it time for Tamaris to go home to UK waters?. At present she is lying in Cork harbour

contact.... Eddie Meaney on  00353872626907

or email Helen on h.geasley at gmail.com

Asking € 18000.  (Euros!)

Sadly we have not been able to contact the seller for a while,

2/16



This is 'Safari' sent in by Gary, similar to 'Tamaris' above but different rig and other differences. I hope to list them soon.



Safari is the sister ship to Tamaris and was built alongside Tamaris at the Johnson and Jago yard at Leigh on Sea in 1950. The vessel was built for a friend of Maurice Griffiths who was a large man .For this reason a raised coach roof was added. This and other small details were the only differences in the two vessels.  Both vessels carried identical rigs,  although it was found the safari had bad weather helm while Tamaris was beautifully balanced, a condition which the designer could not explain and of which was remedied by Mr. William Milne formerly of Aberdeen who brought safari to the west coast of Canada
I hope this will help you. If you require any more info I should be happy to oblige.
                                 Gary

Thanks for that Gary,

John.







The Gulf Stream 42.  We have had a request for more details on this design.  do you know of one that was built?  The last known holder of these plans seems to be unobtainable.  anyone know where Phil Sheaf has moved to?


'Mackerel Skies'  Owned by Graham Peck, this is a great pic of a Finesse 24.  MG was jointly responsible for her nice lines, who was the co-designer? It was  L. Harbotell!   Pleased to get that little gem from an owner!   She sailed out of Maldon for some time, presently at Bradwell on her way to Suffolk.  Hope to see more of her in the future!


Another Finesse 24 found for sale on E-Bay.  Do not know is she sold, and cannot quite make out her name.... however the sail number 12 is clearly visible.  Wonder if the owner is out there?


 A very pretty finesse 27, 'Storm', we believe she is called, for sale on the web 2012.  Who owns her we wonder?


'Meriel'  Now renamed  'John Humby'. This M.G. Barcarole now has her own page on the Builders and Restorers section.  Hugo is keeping us up to date with the restoration.  The boat was in Maldon, but Hugo lives the other side of the country!


This Barcarole was on the Lone Gull II for a while, (and still is too!) but Hugo  Pettingel has identified it as a Barcarole.  Do we have a name?  She was snapped on a mooring at Waldringfield by Ian Clarke.

The owner, Miles has just contacted us, November 2008.  she is called 'Egretta'. sadly 2011 she was lost off Beachy Head... the new owner managed to leap ashore....





The original Barcarole!

It's good to see a website on Maurice Griffiths designs.  Your website mentions Barcarole-class boats, but doesn't show any pictures of Barcarole herself.  My father, Philip Hays, was the original owner of Barcarole, and we spent many pleasant summers cruising the Thames estuary, with occasional trips to France or Belgium.  I have several photos of Barcarole, and would be happy to share them with you.







I've attached an unpublished article that my father probably intended to be published in Yachting Monthly (he had written several articles that were published in YM describing our travels in the barge-yacht Dione).  I found the manuscript in his files after his death in 1972, converted it to MS Word, and then added my own photos.  It describes a trip to Ostend that we took over Easter in 1960.  People in the pictures include my mother, Joan Hays, and my sister, Lesley (shown at the helm as we crossed the French/Belgian border).  After my father's death, my mother married Arthur Bennett, who had owned the Thames barge Henry.  The chart that I added for the beginning of the article was lifted from the web, and is intended for my American friends who are not familiar with European geography.




 Your website includes a mention of Alan Buchanan.  After my father sold Barcarole, he had a Vashti-class boat built, called Cavalier of Kent.  He owned her until close to his death from chronic leukemia.

          - Tony Hays

We will be adding the text of the log of Barcarole to the Logs page shortly.



      Many thanks to William for these excellent pics and the additional information on 'Banjo', that we have passed on to Antonia.

August 2007, have just spoken to a former owner, who spent a long time restoring her, he also gave me the name of the person in my village he bought her from!  I know Eric!  Small world.







'The North Star'  The two pics on the left show what we were told was a M.G. Cockler in a very sad state, being taken from her berth ready to undergo major repairs and refurbishing!  I believe she is in fact a Barcarole, from her dimensions.  The new owner Phil Besley, has her in West Sussex and is interested to hear from any owners of similar boats.

Mail him at the following address, leave out the spaces and put the @ symbol in instead of 'at' of course!  'phil at soundmin.co.uk'  (For those worried about 'web crawlers' trolling through and picking up their addresses this is a neat trick!  Most of us have good enough spam killers to prevent problems, but for the nervous, it works!)



June 2006, Phil has sent these pics in and some more into.  He says it is 27'6" long, by my reckoning that is too long for a Cockler, they were 25ft.

The pics of her afloat show her in Tollesbury, Woodrolfe Creek.  The times I must have sailed past her and not noticed!  I still have a mooring there!




I think she is a Barcarole, the right length, and the later ones had no centreboards,  again the Cockler did have a centreboard...  or did they we have just had details of one without!  Phil is to have his own page on the restorers section where 'The North Star' can be watched as he restores her!

September 2007, we have just heard that this vessel was destroyed by being  set afire...  The owner could not sell it and the farmer wanted his field back..  What  sad end.





'Serica' An M.G. Cockler, owned by Teresa a recent registrant, June 06.  She sails in the Falmouth area.  Teresa confirms her Cockler is 25ft plus the bowsprit, but has no centreboard, but is a bilge keeler.  Years ago I feel sure I went on board a Cockler in the London River and she sported a board, or was she not a Cockler??  Anyone throw any light on it?  I know the first half dozen Barcaroles were centreboard, but after that they were bilge keelers.....  was it the same with the Cockler?


 'Veterata' Sister Ship to Tamaris, new home Found!!  See the Builders and Restorers pages







Another Roach class boat found.  this one is a Tollesbury.  Spotted by John Stevens.


The vessel on the Left is a MG Seareach 30, steel built and looking great!  She is for sale on the net.    http://marinedirectory.ybw.com/boat/new/home.jsp

Sadly the pics do not enlarge.....

Looks just like a Riptide to me!!



'Ayuthia' This beautiful 1936 40 plus foot MG boat was found by John Stevens on the web.  She is for sale in the States.  Built for her owner in Thailand from Teak and exotic timbers, she was recently refurbished...  One for the wish list I think!


This MG 38ft beauty was again found by John Stevens on the web.  She is for sale on Malaysia.


A Gulfstream 44. Again found by J.S. on the web!  Another beauty!








A Gulf Stream, stated as 45ft this one, for sale in north Kent October 2013.

with a beam of 12ft, steel construction and with bilge keels she has apparently been used to live aboard prior to completion as a Gaff Ketch.



  Cannot quite make out the name....... will the proud owner step forward to take a bow?


'Idle Duck'  found on the web by J.S. this boat was based on 'Scoter' a boat built in 1894!  See the book, '60 years a yacht designer' by M.G.


'Idle Duck' Bob Telford the new owner and member of this group, has sent this pic in of her stuck at Oare Creek waiting for the tide to make!  High pressure has kept the levels down!  Bob is not happy! Hope to see her out and about soon. July 06.

She has a page of her own on the restorers section, click here to go there.



September 2015 and news in from Bob, she is taking to the water again!


Bob has splashed out on a Darglow feathering prop too! Bob has also designed and installed a Trim Tab. To be driven by a standard tiller pilot with remote sensor.


Just look and those gleaming topsides


And the lovely shape of her!  MG designed her well, Bob has looked after her even better!







'Good Hope' Roger Crabtree sent this pic of his splendid craft in, he sails the West Country and beyond!  We have just had another good hope owner join us, October 2006, pics to follow!












'Silver Fox'  Designed by MG in the 1930's and seen here in 1945, racing!!  Not a shape one would associate with MG today. Thanks to Ian Clarke for sending this in.

There was a pic of a sister ship, the 'Silver Seal', but not good enough to print...

She is listed as a 25ft, 7 ton  of the 'Olive Mary' design.  MG told me that the plans for most of his pre 1939 designs, were lost due to enemy action... The Y.M. store was bombed.  he did not regret it as he said they were not his best!

The following was received from Paul Rockley, the owner of the original 'Olive Mary' can anyone help him track down the sister ships?  Hopefully a pic of her will be forthcoming soon.

October 2006...  On the left 5 pics of the beautiful 'Olive Mary'!

'with reference your research on Maurice Griffith's designs. I purchased "Olive Mary" (7ton gaff cutter, built by Harry King & Sons in 1931) in 1993, kept her in Cornwall for 9 years before moving back to North Wales. "Olive Mary"  now swings happily on her mooring on the Conwy river. If you are in contact with any of the owners of her sister ships and can put me in touch with them it would be much appreciated.'

Thanks. Paul

mail me at:- paul.rockey at btopenworld.com



The last four pics are of 'Olive Mary' taken by Paul after she had been spruced up for her 77th Birthday in 2008!   And here's to many more.

A credit to you Paul.



The last 4 pics Paul has found show her being built at Pin Mill in Harry King and sons  yard, and her launching in June 1931. splendid pics.

       July 2009 Paul has just resent these scans in for us as they were lost in the computer  change over a month or so ago!  Great finds!









More pics of Olive Mary, sadly because October 2016 Paul has her up for sale.








Good to hear that Olive Mary and Silver Fox are still afloat.

My father and mother owned their sister ship Wendy May until 1992 and I am delighted to report that she is still going strong.  She was built at Deganwy in 1936 of larch planking on oak. She was laid up during the war and recommissioned in the 1950s. The first owner we know of was John Challis who cruised her extensively around the English South and West coast. My father bought her from him in 1974 and sailed her up to Kirby Creek in the Walton backwaters where she was based for several years. During her time on the East coast she took part in annual OGA rallies including the notorious (and riotous) Heineken Challenge from Stone on the river Blackwater to Amsterdam. In her my family explored the Deben, Stour, Orwell and Alde and went as far as Norwich on one memorable summer She also made many North Sea crossings.

In the late 1980's, we sailed from Harwich to Findhorn on the Moray Firth where she was based until Dad sold her in 1992. During this time, ,my parents cruised the West coast of Scotland and Wendy May became a familiar visitor to many island harbours and sea lochs. She has sailed through Corrievrechan twice, anchored off Staffa (in a flat calm) and visited Glasgow as one of the floating attractions at that City's 1990 Garden Festival. During the passage for the latter, my father put in at Irvine Maritime museum for the night and was offered the choice of either berthing alongside the trawler "Altair" (refloated after being sunk with all hands in the Firth of Clyde) or alongside the Longhope life boat! As he said later, it had been a long passage from Oban so if any ghostly visitors came aboard that night they were too fast asleep to notice.

 Her current owner is - or was - the OGA Secretary and she is berthed on the Conway and cruises to Ireland regularly.

I know of one other - "Singapore" - but have no idea if she is afloat and if so where.

Wendy May was the only one of the four sisters not built by Harry King and it’s a coincidence that she and Olive Mary are both based on the Conway. Her present owners are Phil and Lynn Slade. Singapore was sighted by my brother on the Deben in the 1980s so she may still be in those parts.

 Jim Munro

Letter from MG on the left sent to us by Jim, many thanks, this is what makes this site unique!

John








April 2011 and Paul has sent in three up to date pictures of Olive Mary . (Port Penrhyn, Bangor, North Wales, May 2010)



Wide clear decks, something you do not see so often...



And a bowsprit to definitely avoid!  Hope to get some picture of her under sail to add to this section later this season.




'Coridon' a 'Swin' Class yacht, this one seen here in the Netherlands where she is up for sale.  the owner Brian Cole has advertised her with us on the For Sale page, as well as in Holland.    She was built for Brian in 1963 and he is sadly having to part with her...  She is gunter rigged so as to get under the bridges!




'Cailín' A Levanter 33 owned by Ron and Paula Pimm.  She is steel built of course and is actually 34.5 ft long.  Built in 1988 and launched 1989.  They believe the mast has been changed at some stage for a taller rig. Not unusual for MG's boats to have been slightly short in the mast, the GH had the same problem.



Here she is on her mooring at Titchmarsh Marina Walton Backwaters, and a view of the cockpit with her under sail.  At present they are tuning the rig.  All up weight 10 tonnes!   She has a 32 hp BMW engine.  A very solid cruiser.  Sorry about the quality of the pics, scanned from photocopies!  Hope to get real pics of her afloat next season!


'Amadis' Good hope 38 was for sale after sailing from West Mersea to New Zealand!  We understand now from Lily the skipper, that they could not part with her.  Not surprised! She is back nearly where she started. she was built in Australia.

Lily the Skipper is nor living on her in N.Z.  The old website for her adventures has gone, but Lily tells me there is a new link, www.oceanswatch.org  An organisation doing similar things that she and Amadis will no doubt be involved in!



What  a fine looking ship she is!  we have been keeping track of her on the Links page, she was involved with survey work at various exotic locations across the world!

We have this design drawing on CD if anyone fancies restoring or better, building one, in timber or ferro!



Designer: Maurice Griffiths.

Model: Good Hope 38 – centre cockpit cutter.

Builder: David Kew, completed 1990 in Adelaide, Australia.

Construction: Lead ballast keel, 4 tons; ironbark keel timbers and deadwood; jarrah carvel planking to waterline, Queensland maple topsides; karri ribs and stringers. Ply / glass decks and superstructure.

Length overall: 45ft with bowsprit and wind-vane gear.  Length on deck: 38 ft  Beam: 11 ft Draft: 4.6 ft. Gross weight: approx 15 tons.

Designed and built as a seaworthy, offshore yacht by the highly regarded yacht designer Maurice Griffiths. Amadis is an eye-catching yacht and has almost completed a circumnavigation; now ready for her next bluewater cruise. Amadis underwent a major refit over 2003/4 and has been used as research/ dive/ expeditions yacht exclusively since.

The long, full keel allows for easy handling for two people or solo and the shallow draft gives access to many areas whether over coral reefs or in European rivers; she will also dry out comfortably in a mud berth or against a wall. The wide, un-cluttered decks with 4 "bulwarks and ample handholds give safe movement in all weathers. The centre cockpit has high sides and feels very secure. The interior is predominantly white painted with varnished woodwork and many opening ports giving a light and airy feel. There are bunks for up to 8 people: aft cabin has 1 double and one single; saloon 1 single and dinette converts to double; fore peak has two singles. The nav area has a large chart table and huge drawers for charts. Throughout there is a huge storage capacity for boat equipment, spares, tools, personal gear and extra food and water required for extensive cruises. This is a comfortable livaboard yacht.

Rigging: Cutter rig, S/S rigging (2004), alloy spars, twin headsail poles on mast mounted tracks. All running rigging new 2004. Wooden boom cradle.

Steering: Wheel. Monitor wind vane steering gear (2004).

Sails: All tan colour. Fully battened main with slab reefing, genoa on furler, staysail hanked on, spare standard main. All in good condition. Twin running sails, no. 2 jib, trysail in excellent cond.

Winches: Self-tailing Barient winches. 2 x halyard winch mounted on mast. 5 x cockpit sheet winches. 1 x main reefing winch.

Ground tackle: 60 lb plough, 45 lb plough, 80 lb fisherman, 65 m 10 mm chain, 60 m ¾’ nylon line, windlass.

Water tanks: 3 x polypropylene tanks (2003), 400 litre capacity. Storage racks inside, either side of engine ‘room’ for up to 200 litres in jerry cans.

Diesel tanks: 4 x S/S tanks (2 new 2003), 90 gal total capacity. 800 – 1000 nm range.

Auxiliary: Nanni diesel, 35 hp (1992), approx 2500 hrs, very effcient and reliable. Fully accessable for servicing.

Electrics: 12 v system, 3 x 109 Ah batteries, 3 x 34 Watt Solara solar panels, inverter. All new in 2003.

Galley: Gas stove with grill (2006), icebox, fresh and salt water taps (foot pumps).

Electronics: GPS, depth sounder / log (2004), compass (2004), SSB with Pactor modem, VHF.

Safety equipment: 6 man liferaft (in service), dan-buoy, radar reflector horse-shoes, throw line, flares, EPIRB, fire-extinguishers, fire blanket, harness / lifejackets. All equipment new in 2004.

Toilet: Jabsco manual sea-toilet (2006), chemical toilet (2004).

Bilge pumps: Heavy duty manual pump (2004), engine-driven pump (2004), electric centrifugal pump.

Heating: Solid fuel stove.

WOW a lot of MG boat!  lifted from the net, found by J. Stevens  of course!





Another Good Hope class boat, 'Cinnamon Lady'  Beautifully varnished hull, seen for sale on the web 2012.  step forward the proud owner!








'India of Poole'

An MG classic for sale, and a centreboarder as well!  The owner was just been in touch, Feb 09 asking that we add an advert,  she sold quickly and we are not sure where she is now, anyone know?

Solani Class, 12m Classic Yacht Designed by Maurice Griffiths




Originally built  in 1946 by the Mazagon Yard in Bombay for a director of P&O Shipping. 'India' was built entirely from seasoned Indian teak with no expense spared, all from five matched logs seasoned for five years. The bottom, centre board and rudder were also tarred and copper sheathed from new and like the hull remain in their original form. She was kept in the Seychelles before being sailed to the UK by her designer, Maurice Griffiths. He sailed her for a time (ref book 'Magician of the Swatchways') before she was first sold to a Bristol owner before passing on to a Hamble based owner. After a number of years in the UK she  moved to Portugal where her current owner, a respected yacht surveyor, has used her for family holidays. Back in the UK now, 2009.  A lead ballast keel is fitted that can be lowered to increase the draught to 7 feet. The casing forms part of the internal structure adding stiffness. The full width decks give plenty of internal space with full headroom throughout. The current owner has a new project that is taking up all his time so regretfully he is now selling 'India' (Sold)

lifted from the net, found by J. Stevens of course! Updated Feb 2009. and November 2012




A page from the Yachting year!  1947/47!






This is a 'Storm' class boat, but not sure where this pic came from?  Do you recognise her? Can you help me identify her and her owner?



Ditto!


    'Wind Song' The first boat MG designed, built in 1928/9, and look at her now!  Traced on boats and Outboards site, by John Stevens.  May 2007.


Wind Song is an interesting, gaff centreboard cutter and is the first boat to be built to a Maurice Griffiths design. She was built by George Feltham of Portsmouth in 1929 of carvel Teak planking onto steam-bent Canadian Rock Elm frames, Copper fastened. She has Teak floors and six Bronze knees each side of the centre plate case. Decks are marine ply covered with woven glass cloth/epoxy, on oak beams. She offers up to five berths in three cabins! Mechanical propulsion is by Volvo Penta MD2C 2-cylinder 23 hp diesel offset to starboard driving a Darglow three-bladed feathering propeller.

http://www.EasternYachts.com/windsong

Category

Classic Boats

Make

Maurice Griffiths

Length

27.6 feet

Width

8.0

Price

£14,950 GBP

Region

Suffolk

Broker

Astonbury Marine Services

Web Site

http://www.easternyachts.com

Comments

Trade and/or Brokerage Sale

Telephone

+44 (0)1206 305996

June 2007, we understand she is 'under offer'.  Hope the new owner gets in touch!



This picture of 'Windsong' was sent in by Mark, who very nearly bought her. He tell me that she was built with no floors, but was later modified as she always leaked!




'Wind Song'  anchored at Pilsea Island in Chichester Harbour, where she is now based  for the  3rd or 4th time in her life!
Thanks to Max the owner for this pic, Sept 07!




'NYALA'.
 GAFF Ketch  1933
Designed: by Maurice Griffiths and built by Everson in Woodbridge.

LOA:34'6" - LWL: 29' 6"  -  BEAM: 9' 6"   -  DRAFT: 4' 3"









  For sale  on our pages...




'Lone Gull'  Is this the Lone Gull I?  Found in Tunisia by George our Med rep, on his travels!  Yes it is.  MG's own boat!!!

The last we heard one of our registrants had salvaged and purchased the boat, and was making his way back to France with it.  more later we are sure!!

Update October 2007, Lone Gull is back in Europe, in France and Steve has written a book about her adventures, more later on the books page.






          'Lone Gull'   restored and now moored in France, Steve her owner has now asked us to advertise her for sale, see the For Sale page.




I am the new owner of "Dawn", a Lone Gull I. You published some pictures by Hans van Seventer on your website.

I bought her from him September last year. She was not in a good shape (already out of the water for a couple of years then and still is), and I am repairing her now.


I put a few pictures on my website www.xs4all.nl/~fvgemert/dawn, if you're interested


I'll send photos of the repair and when she is in the water again. That may take quit some time, since I am just a part time amateur boat builder with a job in an office for 4 days a week and many concerts as a conductor and other obligations in the weekend.

Best regards,

Frank van Gemert












U/K MG designed 26ft boat, just sold on Boats and Outboards, October 2007.  Where is she, what is she and will the new proud owner take a bow!




This extract has been copied from Mike Kay's brokerage off the net,

  Thanks to Warren Stevenson for spotting this.  So which design is she??

"Cordelia "

Maurice Griffiths 7 Tonner Bermudan Cutter designed by Maurice Griffiths & built by Seacraft Ltd in 1950 Part 1 Registration no.187378(expired) LOA: 8.5m (28ft) LWL: 7.07m (23ft) Beam: 2.5m (8.25ft) Draft: 0.98m (3.2ft) Displacement: 8 tons

CONSTRUCTION
HULL: Mahogany and Teak on Oak, DECK: Sheathed T & G Teak over Oak deck beams S/STRUCTURE: Mahogany and Teak KEEL TYPE/MATERIAL: Long Cast Iron - BALLAST: Lead Ingots

Asking Price : £17,950

  DESCRIPTION
Cordelia is a very well found example of this attractive Maurice Griffiths design. The vessel has been the subject of a comprehensive refit over the past six years by the owner, a highly skilled traditional boat builder, included in the work is: the installation of a new Yanmar 10hp dsl in ’04, the replacement of the Doghouse and hatch assembly and the replacement of the Cockpit. This is a particularly good traditional wooden cruising yacht. Cordelia was featured in Maurice Griffith’s 1952 book Everyman’s Yachting page 241
ACCOMMODATION
Four Berths in two cabins
ENGINE
Yanmar 1GM10 10hp Diesel engine (new ’04), Shaft drive via 3:1 gearbox 12 gallon S/Steel Fuel Tank, Two x 12 Volt 74 Amp Hour Batteries with isolation switch.
DOMESTIC EQUIPMENT
Two burner gas cooker with grill, manual water system with foot pump and 35gallon flexible water tank, Lift out sink, Jabsco sea toilet in sep heads, Taylor’s paraffin cabin heater.
RIGGING DETAILS
Bermudan Cutter rig with Spruce mast and Spars, Stainless Steel Standing Rigging, SAILS: Mainsail (White Roller boom Reefing), Four Headsails in either Tan or White with Wykam Martin Roller furling to both headsails.

Vessel Details cont.

"Cordelia "

EQUIPMENT
NASA Clipper Duette Log, NASA Clipper Duette Echosounder, YCM Steering Compass, Garmin 12 GPS, Simrad HT50 VHF, Tiller Mate Autopilot, NASA Target Navtex, 26lb CQR Anchor with 120Ft 3/8ths Chain and Warp, 20lb Fisherman’s Kedge anchor, Spray hood, Awning, and Dodgers, Electric and Manual bilge pumps, Wetline 3m inflatable dinghy with 2.5hp Outboard (new ’05), Six Fenders, boat hook, Fuel Can, Purpose made overall winter cover.
LOCATION: Helford River, Cornwall



In my book she should have a weighted mahogany centreboard, but there is no mention of that on this listing, I wonder if it were removed, as many others were...

The former owner is a shipwright and wrote the article on her rudder on the tips page!

A double ender with fine lines, called the 7 Tonner in some books and this one was the first built by Seacraft in Essex, but I have a sneaky feeling she was not the first of her class, which might be known by another name....

The new owner, John has just joined us, congratulations John, a fine looking ship.  She will be cruising the South West of the UK.





Look beyond the Lone Gull II 'Brue Gull' in the foreground and you will spot 'Wisp', a Medusa 25 also designed by MG. seen here in Cornwall, pics by Warren Stevenson of the GH 'Safrel'.




'Crystal Voyager' a 38ft, plus overhangs, 43 ft, Barrier Reef class.  With 11ft beam and 6ft draft this ferro boat was professionally built and was  Dec 07 up for sale on our pages. April 2008 we understand she is coming to the Medway and the new owner has joined us.  Hope to see her under sail this summer. For the real deep sea enthusiast...  South till the butter melts.....



Recently found write up in Y.M.




This photo was taken by the new owner whilst trying to sort out the ropes and sails!



Here is a picture taken a little while back in Scottish waters.  Really a powerful looking craft.



Here is another photo taken some years ago, different colours but the hull and coachroof  shape can be clearly seen.



2nd January 2009, Sailing on the Medway at Upnor!  Lucky man!  We hope to meet up with Crystal Voyager during the season and get more great pics of her!



Feb 2009 scrubbing off ready for the 'Marclear' antifouling.



  Looks to be a messy bottom for scrubbing off, but John tells me the Marclear went on easily!

Summer 2010 she was sold from North Fambridge.  New owner yet to come forward.











'Athaena' This is John Snodgrass's wonderfully rebuilt boat, now known to be an Athaena.    She was thought to be built as the  plug for the mould to make the GH 26's in GRP.  However we now know this not to be the case, the builder was a Mr. Solly, a cabinet maker!   We had thought that Terry Erskine made the plug  as a real hull, so he could fit her out as a GH as well. Not so.  However there was a lot of liaison between Terry and Mr Solly.   She has been stripped and totally rebuilt in 2007 in Nottingham.  Last I heard she was at Hull and John was wondering which way to turn at the mouth of the river!  Hope you have sorted the rig now, want to see pics of her sailing!  she will have her own page in the Newsletter, 9th edition.



By wonderful chance, I came across Athaena while doing some research on a boat.



I have just seen some of the pictures of Athaena and she is as beautiful as I remember.



Athaena was built entirely by my father, a very well respected cabinet maker, to a design named "Athaena," by Maurice Griffiths.  My parents were and are ardent fans of the Griffiths designs and had been looking to get back into sailing since selling a previous boat my father had built and sold.  The family fell for her lines and rather than buy anything it was decided to build Athaena, we knew at the time she was the first one to be built.  My father started building February 1978 & she was launched in May 1979.  She was built at the rear of his business premises in Marlborough, Wiltshire and was constructed in the evenings & weekends.  We have pictures of the build and launching.



My parents are away sailing on their present boat but have all the details and plans, I was quite young at the time.



Athaena is a single chine Griffiths design, when they were at the '78 or '79 Southampton Show they saw her exact drawings on Terry Erskine's stand, advertising the new Golden Hind 26, which rather pleased them as the Golden Hind 31 was high on their "dream boat," shopping list at the time.  My understanding is Terry had approached Griffiths to design him a smaller 31, & he had sent back the Athaena plans.  They were changed slightly, i.e. double chine & semi-hung rudder similar to the 31.  His first boats had the coach roof straight through, however when he saw Athaena he preferred the drop coach roof, hence the later ones had the stepped coach roof option.  Terry also added a little bit of weight to the keel.  I assume Terry's yard built the plug for the 26, but it certainly was not Athaena.



Terry & my father became quite good friends & he helped with supply of some of her fittings and at one time they looked at teaming up.



Athaena is a fantastic little yacht & consistently had admiring looks more than any boat we have had since, she introduced me to my love for the sea.



She was launched & kept at Ridge Wharf in Wareham at the top of Poole harbour.  There was one other Golden Hind 26 there, owned by Eric Porter of the Forsythe Saga fame & Golden Hind 31's Gander & Moon Beam? (Moon light we believe), owned by Mark Urry.  Also 'Goosander' moored up there the original no.1 Golden Hind, built by Hartwells.  We were rafted up next to Gander.



In the late summer of 1983 we sold her to a Gentleman from Newbury who I know offered her back to my father a few years ago & I assume this is when she was sold to John.  At the time my father was building a house but was very concerned she found a good home.



Athaena was sold as he had his next boat underway.  We brought what I believe was the only GRP Golden Hind 31 hull produced by KR Skentelbery in Plymouth, who brought the moulds after Erskine.  He had the GRP hull, cockpit & main bulkhead, with some drawings.  Fallow was launched in May 2005 - a tall masted cutter rig, like Athaena.  The tall mast had been produced for the North American market, and she was a quick boat.  My parents re-designed the interior & used their contacts with Terry Erskine & suppliers for fittings, my father designed Fallows walk on Bowsprit, as he had on Athaena.  Fallows coachroof was mahogany, like Athaena, and he tried to use some of the aesthetics of Athaena to influence Fallow, for instance adding slightly more camber on the coachroof and she obviously needed the teak decking (similar style to Athaena,) It was agreed with Skentelbery to launch her as no.250, it wasn’t known exactly what number they were up to at the time.



Interestingly Mark Urry moored just behind Fallow for 6 years and the standard layout he used for his Golden Hinds was taken from Fallow, he did many drawing of her, both inside and out and you will see Fallows styling in his boats.  Again he drew much advice on the building from my father.



Fallow was sold in 1990 when we had a new Rival 36 built by Rival Bowman and have kept her in Lymington ever since, and my parents are somewhere in the Channel on her now.  My father has recently retired but is ready for his next project.  They are now finding Foe rather large and are missing the shoal draft & bilge plates - he has been threatening to build another Athaena, or find Fallow - she went to the North East.  Who knows?  I know we would certainly value contact with Athena’s owner & we have much information and drawings on her, as also on the 31.



With regards & thanks



Jason Solly

July 2008





This pic and the one below were sent in January 2009, but they date from about 10 years before.



Taken off the Channel Isles, Jon says they were going backwards at the time!



Athena has since been sold and if you go to the Forum you will see what the new owner has done to get her back to 'as new'!








'Rawanah' This special MG design is owned by John Cochrane at the moment, but is  for sale on our pages.



  See the 'For Sale  Page' for the full advert.



Pretty as a picture!  She was a departure from MG's normal designs, and something I do not think he really repeated..









'Moonraker'  a Swin Class owned by Wayne in Melbourne, Australia.  She appears to be an excellent example of the class. What we need now is some old magazine with a write up on her, with all the spec etc.  Anyway welcome Wayne and we look forward to seeing pics of her under sail.



January 2011.

Have spent hundreds of hours rebuilding the Swin,  she is ready for paint, fit out and ballast keel.  Not an inch of the boat left untouched. Check out the full length New Zealand Kauri planking.   Moonraker will sail in about 6 months….






Wayne Parr
Shipwright & Sales Manager

E-mail: wayne at woodenboatshop.com.au
Website: www.woodenboatshop.com.au









Cockler seen on E-Bay April 09 by John Hopthrow.  A bargain for some one at £102!

Maurice Griffiths Cockler on eBay, also, Sailing Boats, Boats Watercraft, Cars, Parts Vehicles (end time 10-Apr-09 20:33:59 BST)







'La Cucuracha' a Roach class MG launched at Paglesham in 1962 and now owned by Emma and Dan.  They are trying to restore her to how she looks here!



'La Cucuracha'  The name is Mexican for Cockroach, very clever!




      Pics to left a Roach class for sale in France, March 12.






'Megan Loise' ??  Have we got the spelling right?  A Barrier Reef 38. Found at North Fambridge by John Hopthrow of the Barrier Reef 'Crystal Voyager'.  Can't believe how I missed her when I was there earlier in 2009.  Apparently belongs to one of the staff!  I am organising a Seagull meeting there and have to chat to the harbourmaster next week, so will try and find out more!






'Wind Dancer' a Medusa 25 in South Africa. willies has just found her and is going to renovate her so he can sail her back to the UK.  she was apparently sailed to South Africa in the 1970's so should know the way back home!  Any info on The Medusa class appreciated.  We know they were built in Kent. this one moulded by Fi-Glass developments of Kent (hull no 8) in 1965.).






Good Hope Class 'John Barleycorn', owned by Steve Smith, sailed out of   Fremantle Australia, she is a 1971 Good Hope Cutter-rigged sloop Steel built by Karl Lorbach in Melbourne.   She still boasts much of the original equipment, including the Ford Lees 4 litre diesel (72HP) which now has over 8800 hrs on the clock.  Steve is renovating her with a view maybe to sailing oceans, what she was designed for!



    Have to say she is a lot of boat!




'Black Jack'  a 1927 MG design, restored by Willem D Witt between 2005 and 2008.   12m x 3.2, mahogany. 15m mast. Willem is looking for information , if anyone can help please contact him.   Olde Borchweg 52 9853 tc munnekezijl, 0594 - 688813






M.G.'s Solani Class 'Sheelin' seen on the net January 2011, for sale on eBay. She is in Dublin.  last bid I saw was for 99p!






M.G.'s 'Malwen', pictured off West Mersea by Nigel Seary.  Often seen her on a mooring, first pic of her afloat...  Who is the owner then.....




Spotted in that delightful Dutch harbour of Goes by Nigel and Heidi who sailed there in their new Barbican, anyone know this boat?







The Vulcan 'Silverhow' up in Scotland and in need of a little TLC to get her back in the water. September 2010 she was for sale with 'a little welding to be done'

Hope she finds a new home, looks a capable craft.




She has sold and the new owner Tim has joined!  She is being moved to Grangemouth for restoration but hopes will be back in Scotland later this year!



Here is a picture from the former owner's son Jon, he has more info and if Tim would like to get in touch something to his benefit!  (Sadly Tim we have been unable to raise you on the mail address you  gave). March 2013. September 2016 Tim has been back to say Jon has donated a lovely watercolour, signed by MG to Tim.

Have to say she looks splendid! thank for the picture Jon.




September 2016 and Tim has been back in touch and sent in a couple of pics of work in progress.






Seems there is still some welding to do, but the decks clean up OK.  Wonder if they will have to be lifted to repair the steelwork? Heard back, the steel work has been repaired with 'chemical metal' as welding would have damaged the deck, great idea. hope is lasts....






Vulcan 'Witte raeff'.  The owner, Eric from Middleburg in the Netherlands sent this picture of his new boat in.  He was told she was home built locally and launched about 1980, anyone know any more? July 2012.





   Eric en Ellen have sent some nice pictures in. She is a fine looking ship and looks to be very comfortable.  The single chine hull will have a lot of initial stability.



        The interior is as homely as you can get. Hard to see that she is steel built!  Very cosy.









Vulcan found when out for a sail in the Blackwater on board 'Dougaljo'. This boat is moored off the prom in Maldon. Owner has joined us!



Here is another view, with Maldon Hythe in the background!



Under sail off Osea.  Looks a treat.  We often see her out and about Malcolm keeps her up at Maldon and sails single handed it seems, well he did sail a Maldon Smack for years, so knows the ropes!



Sailing well into a F5 off Osea. August 2013.






Here is a photo of a MG design that I once owned. Her name is SYMPHONY she was built in Appledore England in about 1960 there was a Lloyd's registration number carved into the main beam and all the details of her are recorded in the registry of ships. She was a well made boat Pitch pine on oak, spruce mast, teak deck, the knees where grown oak the bulk heads and transom where Honduras mahogany. I salvaged her in the French canals in about 1984 and over the next 6 years sailed her back to Australia where I regretfully had to sell her, at the time I was sailing under British Small Ship registration. I still have the log books and a journal I keep of the voyage. I have forwarded this information to you as I feel it's a important part of the yacht’s history and if ever she show’s up on your web site please feel free to contact me Kind regards Greg Smith contact him via e-mail   gregorybrucesmith at ymail.com



She was built in 1960 as you say by J. Hinks and Son of Appledore, sadly no longer there!  I looked her up in my 1967 Lloyds!  At that time she was owned by W.R. Letheren and moored in Gosport.  At 29ft  she looks like a Barcarole to me, can you confirm?  I bet she is still about!  Have you written any of these logs up? If so we could publish them in the Newsletter!  A trip to Australia in a 29 foot boat is something to think about! Must have had some exciting moments!  Are you now based in Australia?  We have quite a following there, but of course well dispersed!

I will pass this information on to our historian.

John








Looking for  Barrier Reef "Tisza",

(I'll still watch the Eventide site as it reminds me always of home (the UK) as we spent 18yrs in Heybridge before moving to France 22yrs ago. I miss the "swatchways" and the big east coast skies. Back then we moved to Maldon to sail more ! Hmmm......................

You'll know the reality, there was work, the tides, the children, the fit out, etc. etc.................not as much sailing as we'd hoped for but great times all the same.

Retired now and sail sail and sail. Chucked the varnish tins/brushes bought now a "plastic" boat, oh well...............................

The Barbican 'Tide Time' will have a job finding a new owner down here amongst the French who want 8 berths in a 36 footer !!!

She'll need a "Brit" to stumble on her just as we did when we bought her.)

Before we left the UK in 1989 we had a 38 ft Barrier Reef (Ferro) moored at Woodbridge, she was sold to us by the estate of the deceased owner and we were sold her as a Ferro 'Good Hope' but we soon found out we'd a Barrier Reef as the draft was quite a bit more !!

She was called "Tisza", had a 4cyl 2stroke diesel and had been built by a Hungarian man who'd escaped Hungary to live in the UK. He only had one arm after being wounded in the uprising against the Russians then . Not bad eh ? a 38 ft Ferro built with one arm . He sadly died in a classic accident......; going from shore to boat in his tender he fell in and drowned in the Deben. Sad even now .

We wonder where she is now ? Anyone help ?

I'll stay in touch.

Good to hear from you,

Best regards,

Peter





'Carina' A Bawley. Seen for sale on the web January 2012.



she is at Conyer on the Swale and this is not the first time she has been advertised on EBay.  She is being lovingly restored, see her page!









'Sequence' This beautiful classic was designed by MG for himself.  As was his wont, he altered the design, removing the centreboard and fitting a fixed keel, later she had another 10" of keel added, with MG's approval to improve her performance.  The owner Richard has sent some really nice archive pictures and information, so we have given her a page of her own!  Click here to see more of 'Sequence'






To the left and below are pictures of a framed  sail plan by MG dated 1937. They were sold on EBay and though I contacted the seller and bid a small amount for the drawing,  these were the best pictures I could obtain.  As MG said, his pre WWII designs were not his best and he was not too concerned when the originals were lost  in the war 'due to enemy action'.  Would still have been nice to get a clear copy for the archives.  Could not get the seller to remove from frame to photograph for posterity.  Anyone recognise the design? A 28ft  Centreboarder...  Could this be 'Tringa'?

By the way the foot is not mine!  it's the sellers!









'Helen' an MG  Bawley.  A less than flattering view of her as she is hauled out, March 2014. loads of growth....

She was called ' La Deseada', (as Alex the new owner says, try saying and spelling that on the VHF!)




She is ashore for a repaint, bottom being antifouled with Marclear!  She will look 100% shortly.  Do not expect to see any muck on her bottom next year!



Scrubbed up, she comes up quite well!  but will soon look a whole lot smarter.

Alex tells me he has designed and built a small solid fuel stove for her, hope to see more of that too.  If last Spring/summer is anything to go by a good investment.




something about the lines of the Bawley, very pleasing on the eye.

Look forward to crossing wakes during the season.





'Saiorse'  A Roach Design.  built on the roach at Paglesham, Essex.

Owned by member Chris and sailing in France.  Up for sale July 2014. see For Sale page. Still for sale 2016....











'Barcarole'

It's good to see a website on Maurice Griffiths designs.  Your website mentions Barcarole-class boats, but doesn't show any pictures of Barcarole herself.  My father, Philip Hays, was the original owner of Barcarole, and we spent many pleasant summers cruising the Thames estuary, with occasional trips to France or Belgium.  I have several photos of Barcarole, and would be happy to share them with you.







I've attached an unpublished article that my father probably intended to be published in Yachting Monthly (he had written several articles that were published in YM describing our travels in the barge-yacht Dione).  I found the manuscript in his files after his death in 1972, converted it to MS Word, and then added my own photos.  It describes a trip to Ostend that we took over Easter in 1960.  People in the pictures include my mother, Joan Hays, and my sister, Lesley (shown at the helm as we crossed the French/Belgian border).  After my father's death, my mother married Arthur Bennett, who had owned the Thames barge Henry.  The chart that I added for the beginning of the article was lifted from the web, and is intended for my American friends who are not familiar with European geography.

Your website includes a mention of Alan Buchanan.  After my father sold Barcarole, he had a Vashti-class boat built, called Cavalier of Kent.  He owned her until close to his death from chronic leukaemia.


         - Tony Hays







'Kismet III'

This luxurious and beautiful MG design is in Australia and owned by James de Berg, who has just joined us, July 2016.

'Kismet' had disappeared off the radar for many years, MG lost track of her as he says in his book, 'Sixty Years a Yacht designer'. See page 78.

'Kismet' has a section of her own in that book.  As far as we know she had no sister ships.   'Kismet', was built in 1966 with a centreboard with a board up draft of 4ft and board down an amazing 9ft!.

Moored Foster - Tuncurry, NSW Australia.

'Kismet' was fully restored in 2013 when the centreboard was removed and replaced with a full keel. The deck was also replaced with Ply/fibreglass.

I am not sure I have ever seen an MG design with such a finish!  Such attention to detail, she really is one of the finest.



Had this back from James.

Yes, she was for sale and that  (first) photo is about an hour after I purchased her, thus the signs.



I am not sure where the III came from, she was originally Australian registered as 'Kismet' obviously at some point it was changed. The original photos I have of her look very different to today, apart from the colour, she had varnished wooden coach house, no bowsprit and what appears to be a sloop rig with a wooden mast. All was changed in the rebuild.



I would be interested to see if you have photos of the original for me to compare.



I don't have a lot of photos of her out of the water but will try to dig those up.



Does your CD have drawings for 'Kismet', if so I would love to buy one and have them printed and framed. (Sadly Kismet's drawings are not to be found...)



I have dug out a few more photos of the old girl for you to add when you can. (Thanks added here!)



The website is a sensational resource and no doubt used by thousands. Thank you for putting it together.



I look forward to working my way through your site.



James











White Rose III  A Cape of Good Hope design found by Greg in Australia, up for sale for over 80k Au$.

Steel and looking well fitted out and ready to go anywhere!
